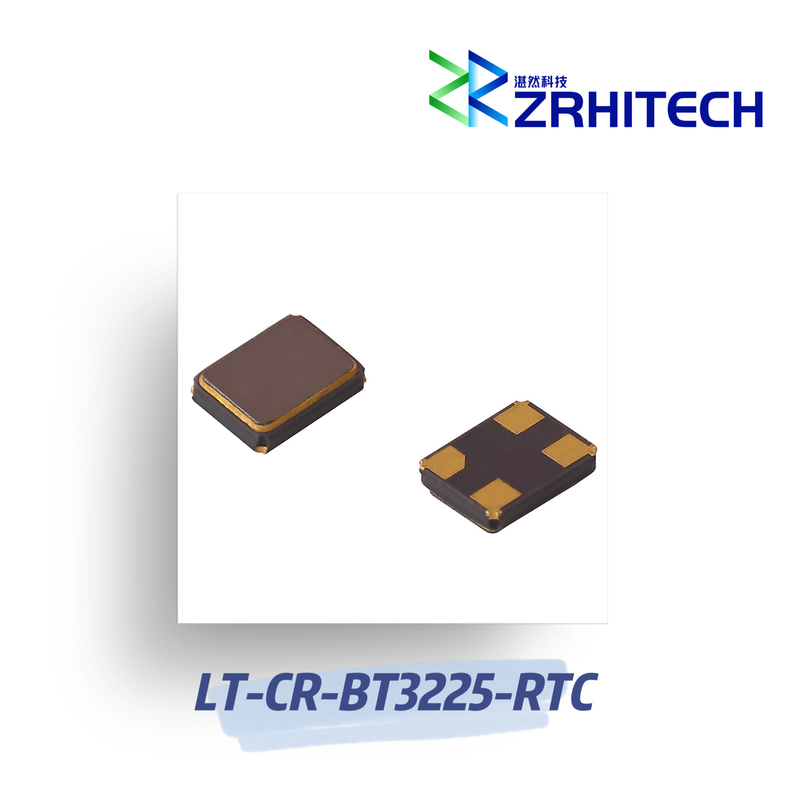

High Precision 23.768KHz TCXO Oscillators for Real Time Clock Portable Instruments Timing Synchronization Voltage 1.8-5V
-
Highlight
23.768KHz TCXO Oscillators
,Portable Instruments TCXO Oscillators
,Real Time Clock TCXO Oscillators
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature±5ppm
-
Frequency Range23.768KHz
-
Voltage1.8~5V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BT3225-RTC
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
High Precision 23.768KHz TCXO Oscillators for Real Time Clock Portable Instruments Timing Synchronization Voltage 1.8-5V
23.768KHz 3.2×2.5mm for Real Time Clock, Portable Instruments, Timing Synchronization TCXO
Quick Detail:
· Aluminum housing
· 1.8 to 5V VDD options
· -40℃~85℃ operating temperature
· Small package
· High precision
· Low phase noise
· Optional three-state control function
· Anti-overload > 30000g
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-BT3225-RTC is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±5.0ppm over -40ºC to +85ºC across a supply voltage range of 1.8V to 5V. The bt3225-rtc uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 3.2 mm x 2.5 mm x 1.3 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-BT3225-RTC | |
| Frequency Range |
32.768KHz |
|
| Operating Voltage |
1.8/2.5/3.0/3.3/5V |
|
| Operating current | / | |
| Working temperature range |
-40℃~+85℃ |
|
| Frequency Stability vs. Temperature |
±5.0ppm |
-40℃~+85℃ |
| Initial accuracy of reference temperature | / | |
| Output Waveform |
LVCMOS |
|
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) | / | |
| Acceleration sensitivity | / | |
| Dimension | 3.2×2.5×1.3mm | |
| Note: For specifications beyond the above table, please contact us for customization. | ||
Outline Drawing (Unit: mm):
