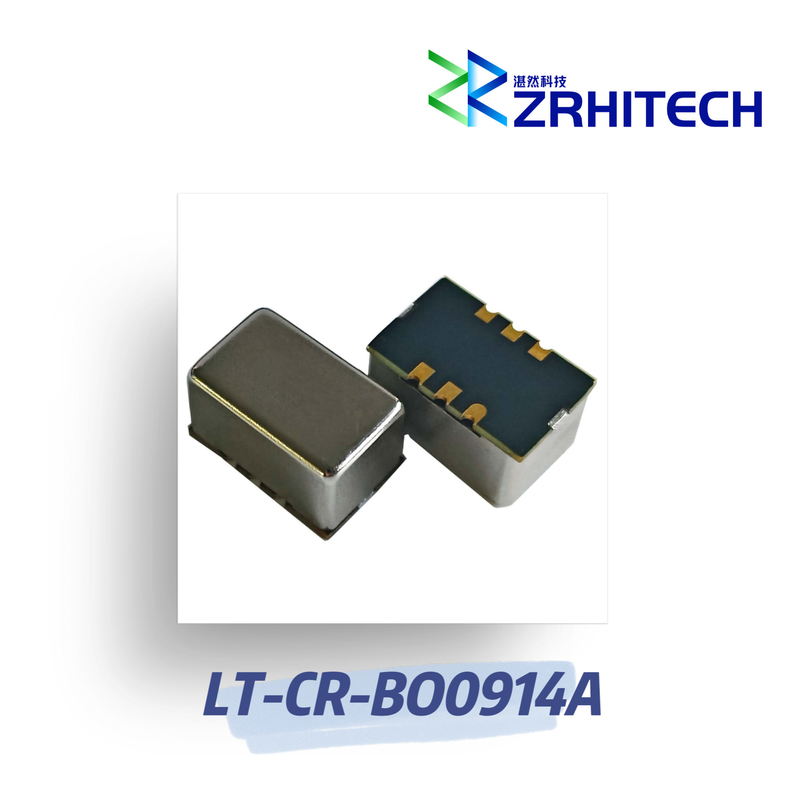

10MHz to 50MHz 14.6mmx9.3mm OCXO Oscillators Wide Temperature Range Ultra Stable
-
Highlight
14.6mm*9.3mm OCXO Oscillators
,Ultra Stable OCXO Oscillators
,50MHz OCXO Oscillators
-
FeaturesLow Phase Noise
-
Product NameOven Controlled Crystal Oscillator (OCXO)
-
ApplicationSatellite Communications, Base Stations, Measuring Instruments, Etc
-
MaterialAluminum
-
Temperature-55~95℃
-
Frequency Range10MHz~50MHz
-
Voltage3.3V/5.0V
-
ColorBlack
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BO0914A
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
10MHz to 50MHz 14.6mmx9.3mm OCXO Oscillators Wide Temperature Range Ultra Stable
10MHz to 50MHz 14.6mm×9.3mm OCXO Oscillators Wide Temperature Range Ultra Stable
Product Overview
The LT-CR-bo0914a is ZR's latest Oven Controlled Crystal Oscillator (OCXO) featuring high precision and low phase noise performance. Designed for demanding applications in satellite communications, base stations, and measuring instruments.
Key Features
- Compact SMD package (14.6 × 9.3 × 8.5 mm)
- Wide operating temperature range: -55℃ to +95℃
- 3.3V/5.0V operating voltage options
- Low phase noise: -110dBc/Hz@10Hz
- High frequency stability: ±500ppb
- Available in sine wave or CMOS output waveforms
- Aluminum housing for durability
- Compliant with CE, RoHS, and REACH standards
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BO0914A | |
| Frequency Range | 10MHz~50MHz | |
| Operating Voltage | 3.3V/5.0V | |
| Operating Temperature | -55℃~95℃ | |
| Frequency Stability | ≤±500ppb | -55℃ ~ +85℃ |
| Frequency Tolerance | ≤±0.3ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | Sine Wave | |
| Control Voltage | 3V~5V | |
| Phase Noise (typ.) | -110dBc/Hz@10Hz -130dBc/Hz@100Hz -155dBc/Hz@1kHz -160dBc/Hz@10kHz -165dBc/Hz@100kHz |
Typical Frequency:10MHz At +25℃ |
| Dimensions | 14.6 × 9.3 × 8.5 mm |
Note: Custom specifications available upon request.
