Aluminum High Precision Low Phase Noise 50MHz to 120MHz 20.2mm*12.6mm Oven Controlled Crystal Oscillator OCXO
-
Highlight
High Precision OCXO
,120MHz OCXO
,50MHz OCXO
-
FeaturesLow Phase Noise
-
Product NameOven Controlled Crystal Oscillator (OCXO)
-
ApplicationSatellite Communications, Base Stations, Measuring Instruments, Etc
-
MaterialAluminum
-
Temperature-55~85℃
-
Frequency Range50MHz~120MHz
-
Voltage5V/12V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-OC-BO1220H
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
Aluminum High Precision Low Phase Noise 50MHz to 120MHz 20.2mm*12.6mm Oven Controlled Crystal Oscillator OCXO
50MHz~120MHz 20.2mm*12.6mm, High Stability, Wide Temperature Range OCXO
Quick Detail:
· Aluminum housing
· 5V/12V Operating Voltage (VCC)
· -55℃~+85℃ operating temperature
· SMD package
· High precision
· Low phase noise
· CMOS or Sine Wave Output Waveform
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:

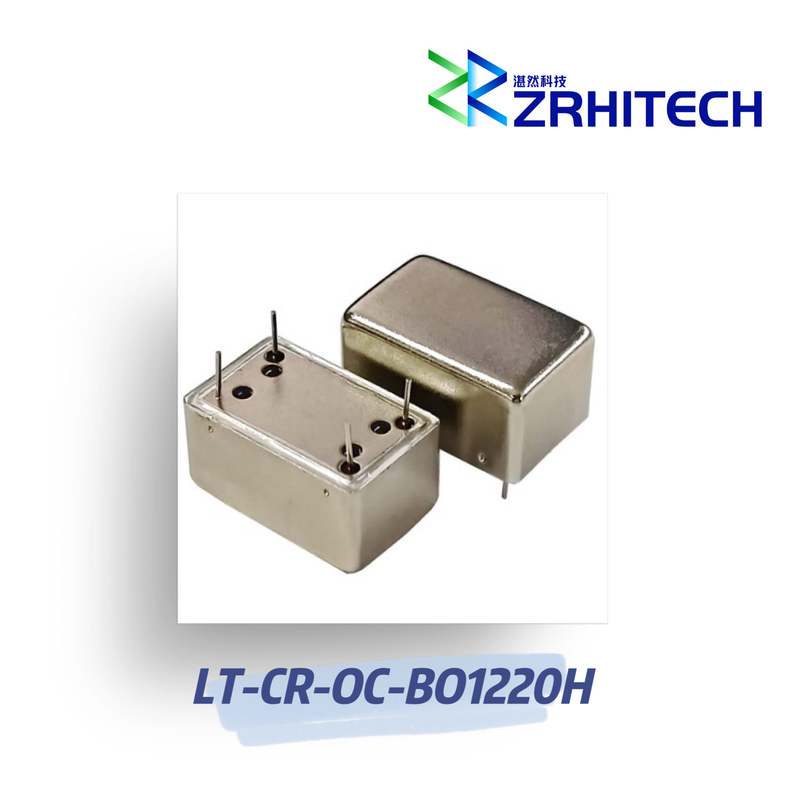

The LT-CR-BO1220H is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -85 dBc/100MHz (at 10 Hz offset) and have a frequency stability of ±500 ppb (vs. temperature). These OCXOs are fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 20.2 x 12.6 x 11.0 mm. These OCXOs are ideal for satellite communications, base stations, measuring instruments, etc...
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-BO1220H | |
| Frequency Range | 50MHz~120MHz | |
| Operating Voltage(VCC) | 5V/12V | |
| Setup Power Consumption | ≤3.0W | |
| Operating Temperature | -55℃~85℃ | |
| Frequency Stability vs. Temperature | ≤±50ppb | -55℃~+85℃ |
| Frequency Tolerance | ≤±300ppm |
At shipment, nominal EFC, +25℃ |
| Output Waveform |
Sine Wave, LVCMOS |
|
| Output Impedance | 50 Ohms | |
| Output Power | - | |
| Control Voltage(VC) | 0V~5V | |
| Voltaged Frequency Range | - | |
| Voltaged Slope | - | |
| Voltaged Linearity | - | |
| Input Impendance | - | |
| Phase Noise (typ.) |
-85dBc/Hz@10Hz； -115dBc/Hz@100Hz； -145dBc/Hz@1kHz； -155dBc/Hz@10kHz； -155dBc/Hz@100kHz |
Typical Frequency:10MHz At +25℃ |
| Dimension |
20.2 x 12.6 x 11.0mm |
|
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
Our products are sold all over the world, you can rest assured.
