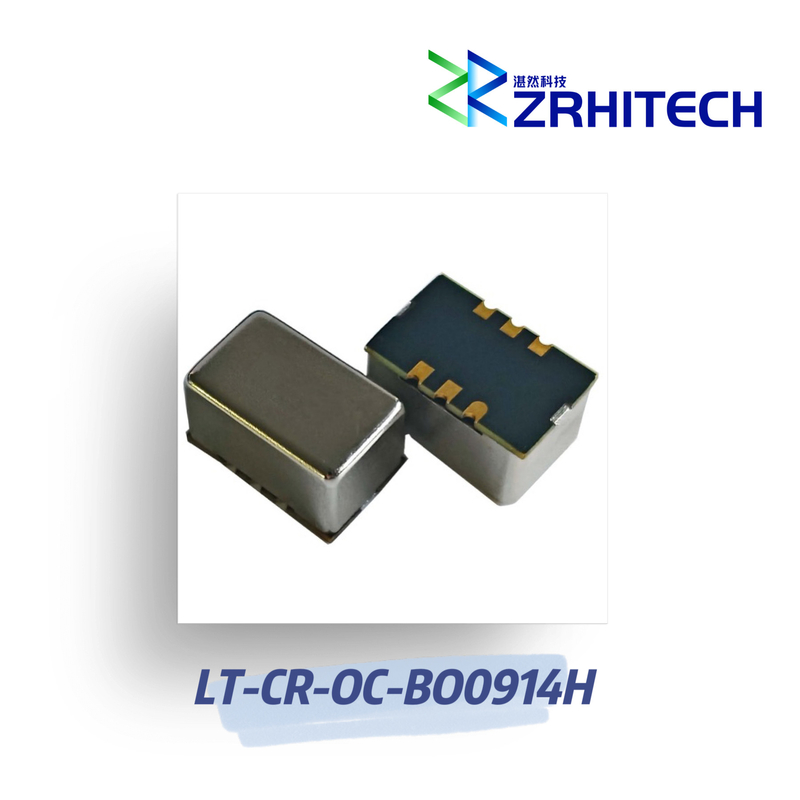

Aluminum OCXO 50MHz-200MHz with High Precision and Low Phase Noise

50MHz~200MHz 14.0mm*9.0mm, Wide Temperature Range, Ultra Stable OCXO





Quick Detail:

· Aluminum housing

· 3.3V Operating Voltage (VCC)

· -55℃~+85℃ operating temperature

· SMD package

· High precision

· Low phase noise

· CMOS or Sine Wave Output Waveform

· CE, RoHS, REACH compliant

· 1 Year Warranty



Description:



The LT-CR-BO0914H is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -100 dBc/1Hz (at 10 Hz offset) and have a frequency stability of ±50 ppb (vs. temperature). These OCXOs are fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 14.6 x 9.6 x 8.0 mm. These OCXOs are ideal for satellite communications, base stations, measuring instruments, etc...







Specifications:

Electrical / Optical Characteristics (Ta=25±3)




Items Specification Conditions
Part Number LT-CR-BO0914H
Frequency Range 50MHz~200MHz
Operating Voltage(VCC) 3.3V/5.0V
Setup Power Consumption ≤3.0W
Operating Temperature -55℃~85℃
Frequency Stability vs. Temperature ≤±50ppb -55℃~+85℃
Frequency Tolerance ≤±100ppm

At shipment, nominal EFC, +25℃

Output Waveform

Sine Wave


Output Impendance 50 Ohms
Output Power -
Control Voltage(VC) 1.5V~2.5V
Voltaged Frequency Range -
Voltaged Slope  -
Voltaged Linearity -
Input Impendance -
Phase Noise (typ.)

-110dBc/Hz@10Hz;

-130dBc/Hz@100Hz;

-160dBc/Hz@1kHz;

-165dBc/Hz@10kHz;

-170dBc/Hz@100kHz

Typical Frequency:10MHz

At +25℃

Dimension

14.6 x 9.6 x 8.0mm


Note: for custom specs, please contact us directly.











Outline Drawing (Unit: mm):
