Aluminum 5MHz to 50MHz OCXO High Precision Low Phase Noise for Satellite Communications
-
Highlight
High Precision OCXO
,5MHz to 50MHz OCXO
,Satellite Communications OCXO
-
FeaturesLow Phase Noise
-
Product NameOven Controlled Crystal Oscillator (OCXO)
-
ApplicationSatellite Communications, Base Stations, Measuring Instruments, Etc
-
MaterialAluminum
-
Temperature-45~85℃
-
Frequency Range5MHz~50MHz
-
Voltage3.3
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-BO0907L
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

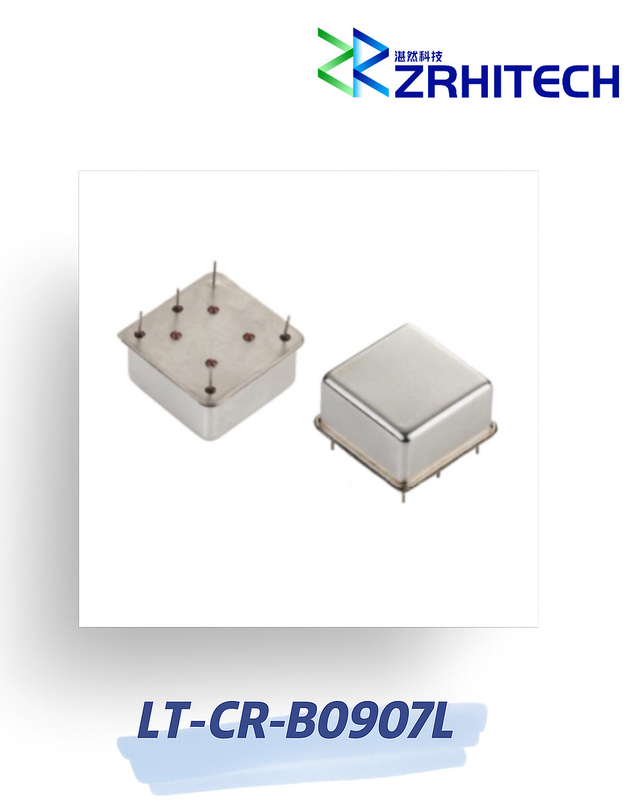

Aluminum 5MHz to 50MHz OCXO High Precision Low Phase Noise for Satellite Communications
Aluminum 5MHz to 50MHz OCXO High Precision Low Phase Noise for Satellite Communications
Product Overview
The LT-CR-BO0907L is a premium Oven Controlled Crystal Oscillator (OCXO) designed for demanding applications requiring exceptional frequency stability and low phase noise.
Key Features
- Aluminum housing for durability and thermal management
- 3.3V operating voltage (VCC)
- Wide operating temperature range: -45℃ to +85℃
- SMD package (9.7×7.5×5.6mm) for compact installations
- High precision with ±10ppb frequency stability
- Ultra-low phase noise performance
- Choice of CMOS or Sine Wave output waveforms
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BO0907L | |
| Frequency Range | 5MHz~50MHz | |
| Operating Voltage | 3.3V | |
| Power Consumption | ≤2.5W | Setup |
| Operating Temperature | -45℃~85℃ | |
| Frequency Stability | ≤±10ppb | -45℃~85℃ |
| Frequency Tolerance | ≤±500ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | CMOS or Sine Wave | |
| Output Impedance | 50ohms | |
| Phase Noise (typical) | -110dBc/Hz@10Hz -135dBc/Hz@100Hz -150dBc/Hz@1kHz -155dBc/Hz@10kHz -155dBc/Hz@100kHz |
10MHz at +25℃ |
| Dimensions | 9.7×7.5×5.6mm |
Applications
This high-performance OCXO is ideal for:
- Satellite communication systems
- Base station equipment
- Precision measuring instruments
- Other applications requiring ultra-stable frequency references
Product Diagram
Note: Custom specifications available upon request. Contact us for tailored solutions.
