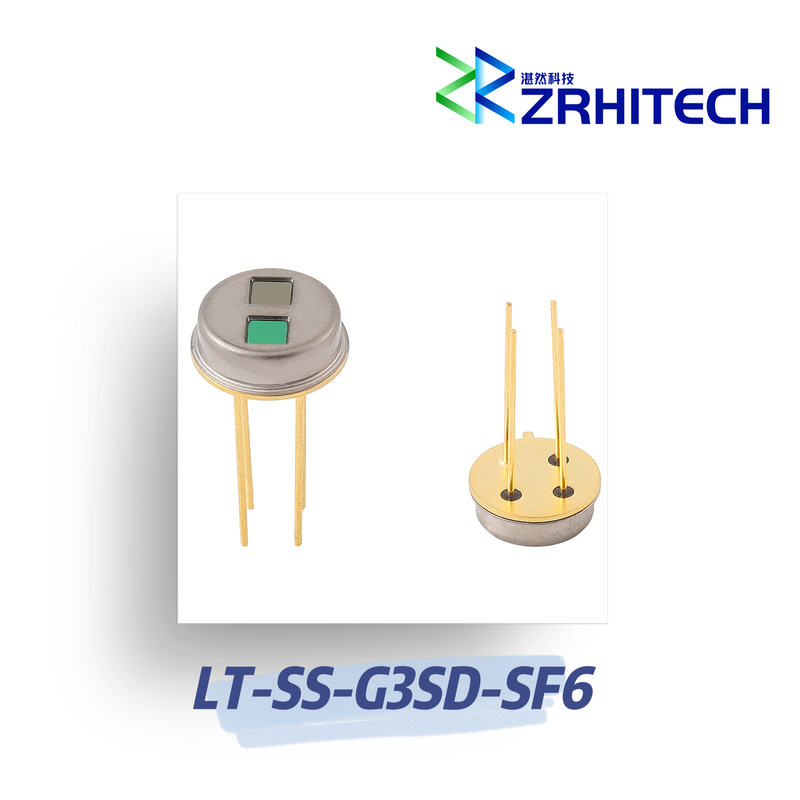

High Infrared Response Rate SF6 Gas Sensor with Silver Material and Temperature Range
-
Highlight
Silver Material SF6 Gas Sensor
,Temperature Range SF6 Gas Sensor
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameGas Sensor
-
MaterialAluminum
-
Operating Temperature-20~100℃
-
ApplicationSF6 Switchgear Gas Leak Monitoring
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-G3AD-SF6
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
High Infrared Response Rate SF6 Gas Sensor with Silver Material and Temperature Range
High Infrared Response Rate SF6 Gas Sensor with Silver Material
Key Features
- Aluminum housing with silver finish
- High infrared response rate for accurate detection
- Wide operating temperature range: -20℃ to +100℃
- Excellent repeatability and reliability
- TO-39 Twin window metal shell package
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SS-G3AD-SF6 is a high-precision SF6 gas sensor designed for switchgear gas leak monitoring applications. Featuring a 1.8×1.8mm chip size with 108° viewing angle, this sensor offers high sensitivity and stability across a broad temperature range.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SS-G3AD-SF6 | |
| Chip Size | 1.8×1.8mm | |
| Sensitive Area | 1.4×1.4mm | |
| Viewing Angle | 108° | |
| Resistance | 72±8 kΩ | |
| Response Ratio | 78V/W | |
| Time Constant | 25ms | |
| Operating Temperature | -20℃ to +100℃ | |
| Storage Temperature | -40℃ to +125℃ |
Filter Details
Outline Dimensions
Note: Custom specifications available upon request. Contact us for specialized requirements.
