Highlight
high power PIN Diode Switch
,PIN Diode Switch 0.5 GHZ
,8 GHz PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.5 To 8 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW3TA-005080S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

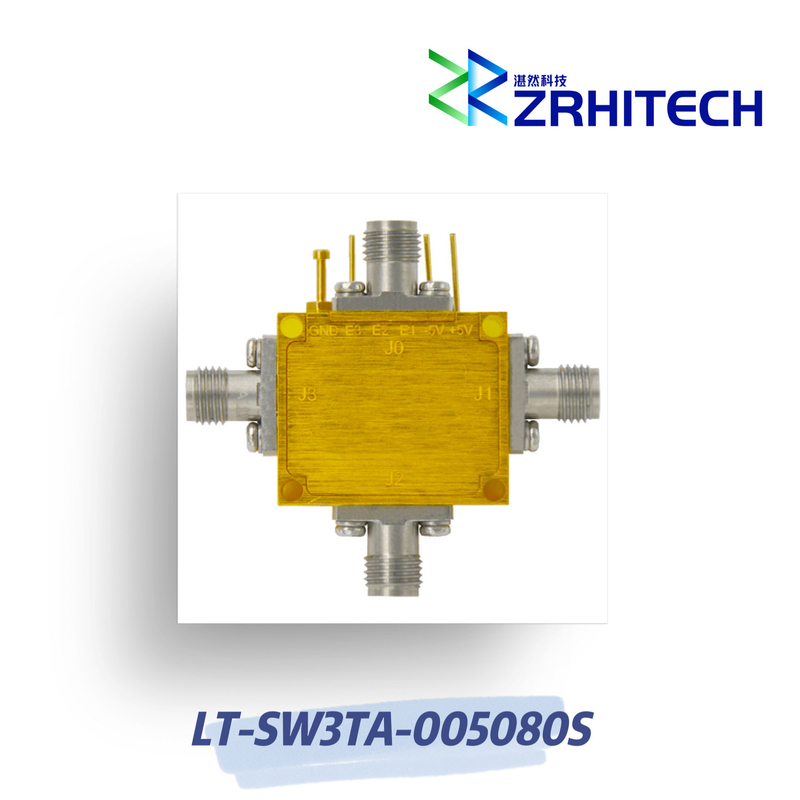

0.5 To 8 GHz SP3T Absorptive PIN Diode Switch
0.5 To 8 GHz SP3T Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring a durable aluminum housing and reliable performance across a wide temperature range.
Key Features
- Frequency range: 0.5 to 8 GHz
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- Fast switching time: 100ns
- CE, RoHS, REACH compliant
- 1-year warranty
Detailed Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW3TA-005080S | |
| Type | Absorptive | |
| Configuration | SP3T | |
| Frequency Range | 0.5 to 8 GHz | |
| Insertion Loss | 2 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.5:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 150mA -5V / 50mA |
|
| Dimension | 40×20×10.2mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Outline Drawing
