Highlight
10mhz tcxo
,12mhz tcxo
,19.2 mhz tcxo
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature±0.3ppm~±2ppm
-
Frequency Range10MHz~150MHz
-
Voltage3.3~5.5V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-TC-12M-2020
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

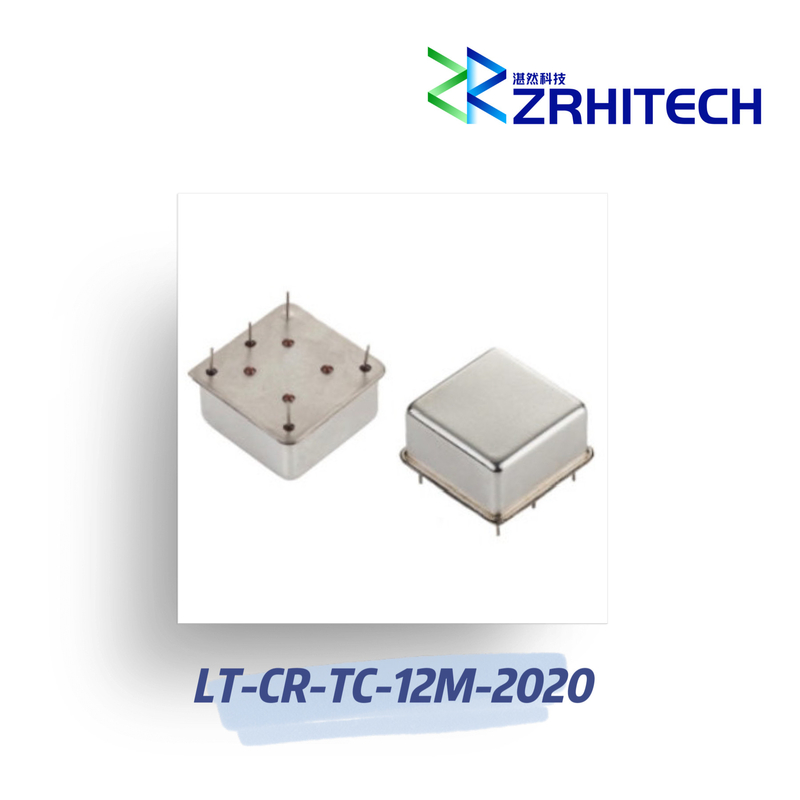

19.2 Mhz 12mhz 10mhz Tcxo Small Package And High Precision
10MHz~150MHz LT-CR series temperature-compensated voltage controlled crystal oscillator
Quick Detail:
· Aluminum Housing
· National production design
· -55℃~85℃ operating temperature
· Small Package
· High Precision
· Low Phase Noise
· Optional three-state control function
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-TC-12M-2020 is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.3 ppm to ±2ppm over -55ºC to +85ºC across a supply voltage range of 3.3V to 5V. The LT-CR uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 20 mm x 20 mm x 10.5 mm ceramic package make these components ideal for ground and on-board environment
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-CR-TC-12M-2020 | |
| Frequency Range | 12M,10MHz~150MHz | |
| Operating Voltage | 3.3~5.5V | |
| Operating current | ≤60mA | |
| Working temperature range | -55℃~85℃ | |
| Frequency Stability vs. Temperature | ±0.3ppm~±2ppm | Frequency relative to 25℃ |
| Initial accuracy of reference temperature | ≤1ppm | @25℃±5℃ |
| Output Waveform | CMOS | |
| Output Load | 50Ω | |
| Output power | 8dBm~10dBm | |
| Harmonic wave | ≤-30dBc | |
| Stray | ≤-90dBm | |
| Phase noise(typical) | -145dBc/Hz@1kHz； -155dBc/Hz@10kHz；-155dBc/Hz@100kHz | Typical frequency:100MHz |
| Acceleration sensitivity | 0.01ppb/g(customizable) | 20Hz~2KHz 10g |
| Dimension | 20×20×10.5mm | |
| Note: For specifications beyond the above table, please contact us for customization. | ||
Outline Drawing (Unit: mm):
