Highlight
Wireless RF Amplifiers
,RF Amplifiers 33dB
,30GHz RF Amplifiers
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range24 To 30 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-240300-G33P32
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

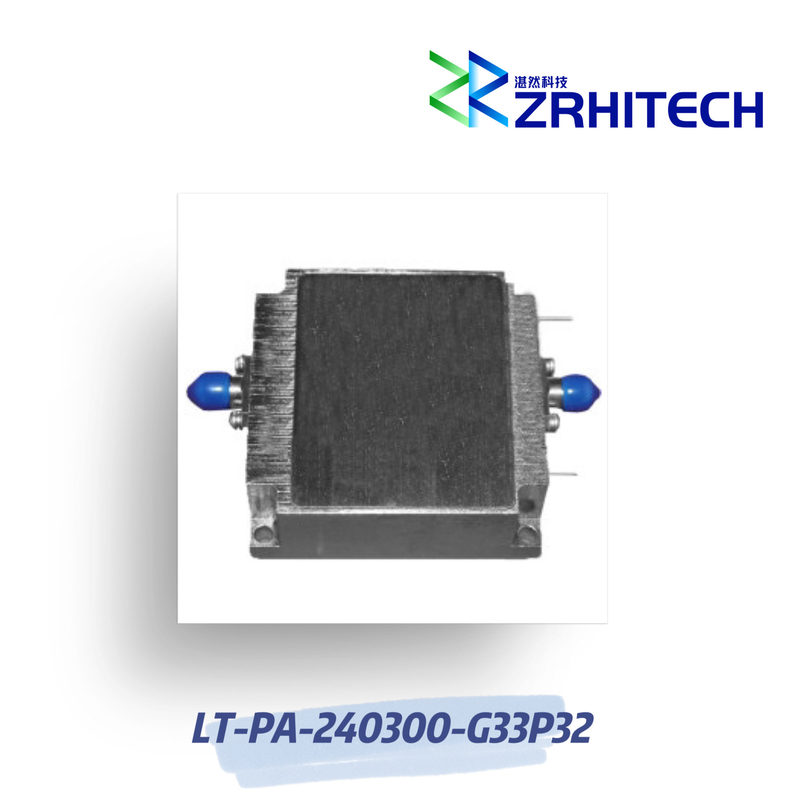

24 To 30 GHz 32 dBm Power Amplifier with 33 dB Small Signal Gain
24 To 30 GHz 32 dBm Power Amplifier with 33 dB Small Signal Gain
Product Overview
The LT-PA-240300-G33P32 is a high-performance RF power amplifier designed for demanding wireless communication applications. Featuring an aluminum housing and wide operating temperature range, this amplifier delivers reliable performance in challenging environments.
Key Features
- Frequency range: 24 to 30 GHz
- Small signal gain: 33 dB
- Output power: 32 dBm
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-240300-G33P32 | |
| Configuration | Module with Connector | |
| Frequency Range | 24 to 30 GHz | |
| Small Signal Gain | 33 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 32 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +15V / 2000 mA | |
| Operating Temperature | -20 to +60 ℃ | |
| Dimension | 50 × 70 × 25.4 mm |
Note: Custom specifications available upon request. Please contact us for details.
Product Dimensions
