Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range6.5 To 7 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-065070-G30P20
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

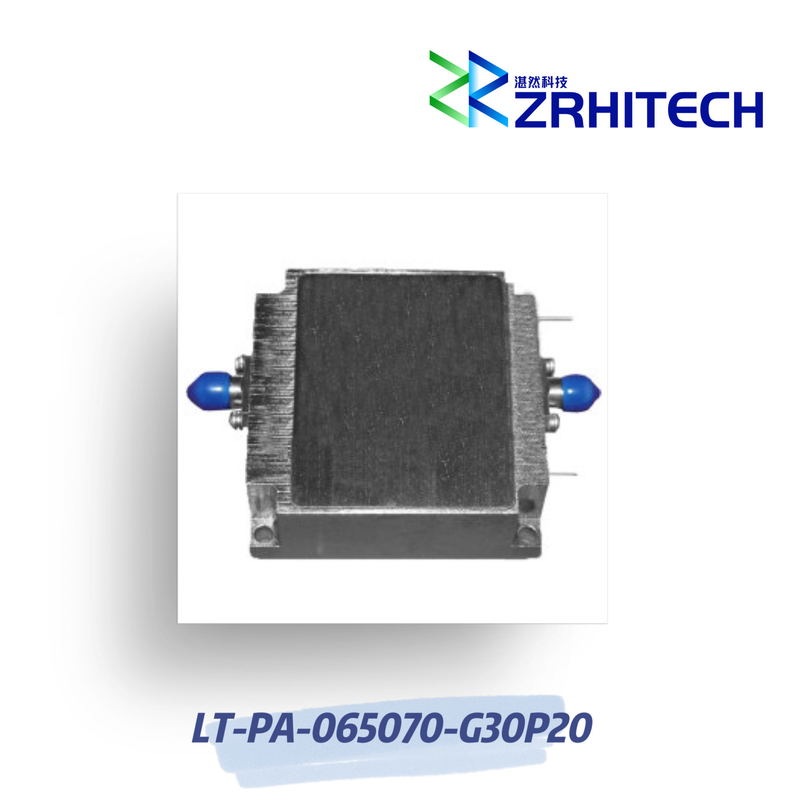

6.5 To 7 GHz 20 dBm Power Amplifier with 30dB Small Signal Gain
6.5 to 7 GHz LT-PA Series Power Amplifier
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Small Signal Gain 30dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PA-065070-G30P20 from ZR is a RF Amplifier with Frequency 6.5 to 7 GHz, Small Signal Gain 30 dB, Gain Flatness ±1.0 dB, Output Power 20dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA-065070-G30P20 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-PA-065070-G30P20 | |
| Configuration | Module with Connector | |
| Frequency Range | 6.5 to 7 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 20 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 400 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 35*35*16 mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
