High Power RF Amplifier
,RF Amplifier Module
,33dB RF Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.01 To 3 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-10M030-G33P20
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

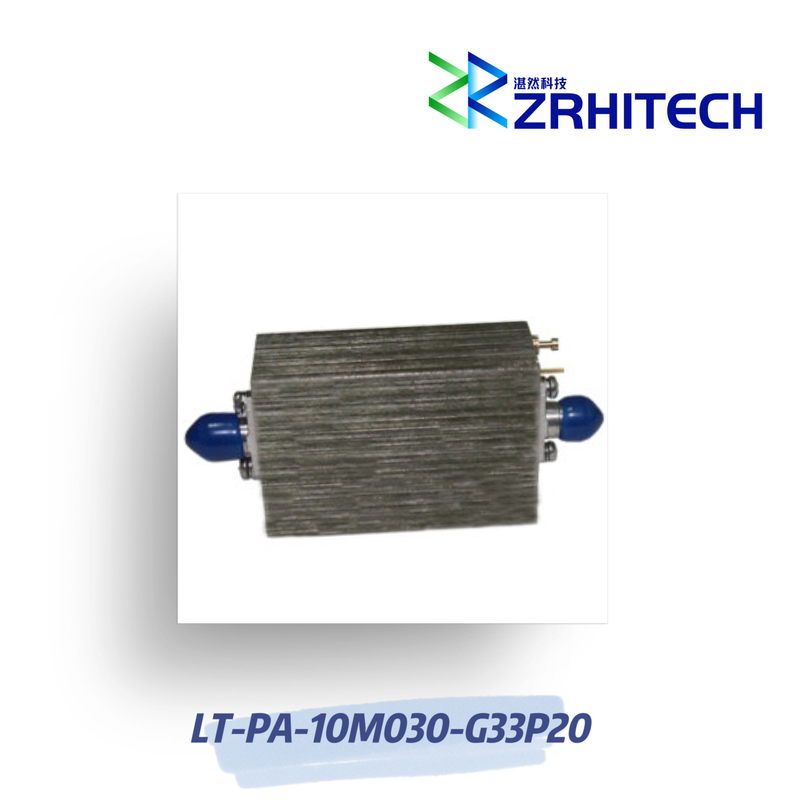

0.01 To 3 GHz 20dBm Power Amplifier with 33dB Small Signal Gain
0.01 To 3 GHz 20dBm Power Amplifier with 33dB Small Signal Gain
Product Overview
The LT-PA-10M030-G33P20 is a high-performance RF power amplifier featuring a broad frequency range from 0.01 to 3 GHz with 33dB small signal gain and 20dBm output power. Designed for wireless communication applications, this amplifier combines precision engineering with robust aluminum housing.
Key Features
- Frequency range: 0.01 to 3 GHz
- Small signal gain: 33dB
- Output power: 20dBm
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-10M030-G33P20 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.01 to 3 GHz | |
| Small Signal Gain | 33 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 20 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 250 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 40 × 21 × 12 mm |
Product Dimensions
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
