Highlight
RF Amplifiers for Drones
,RF Amplifiers for UAV
,18GHz RF Amplifiers
-

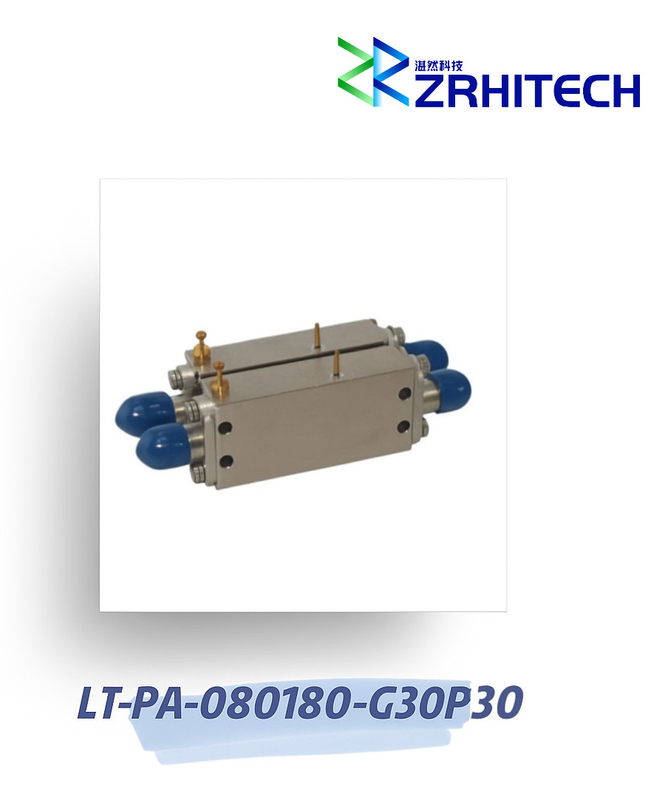

Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range8 To 18 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-080180-G30P3
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
8 To 18 GHz 30dBm Power Amplifier with 30dB Small Signal Gain
8 To 18 GHz 30dBm Power Amplifier with 30dB Small Signal Gain
Product Overview
The LT-PA series Power Amplifier is designed for wireless communication applications, featuring an aluminum housing and operating within a wide temperature range of -40℃ to +85℃.
Key Features
- Frequency range: 8 to 18 GHz
- 30dB small signal gain
- 30dBm output power
- ±4.0 dB gain flatness
- Compact dimensions: 50×50×25.4 mm
- CE, RoHS, REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-080180-G30P30 | |
| Configuration | Module with Connector | |
| Frequency Range | 8 to 18 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±4.0 dB | |
| Output Power | 30 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 1500 mA | |
| Operating Temperature | -20 to +60 ℃ |
Note: Custom specifications available upon request. Please contact us for details.

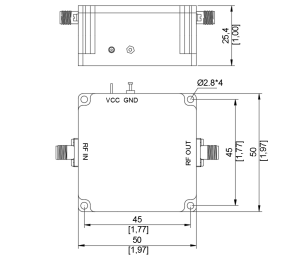

Product Dimensions
