RF and Microwave Amplifiers
,RF Amplifiers 16dB
,16dB RF Amplifiers
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range8 To 15.5 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-080155-G10P16
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

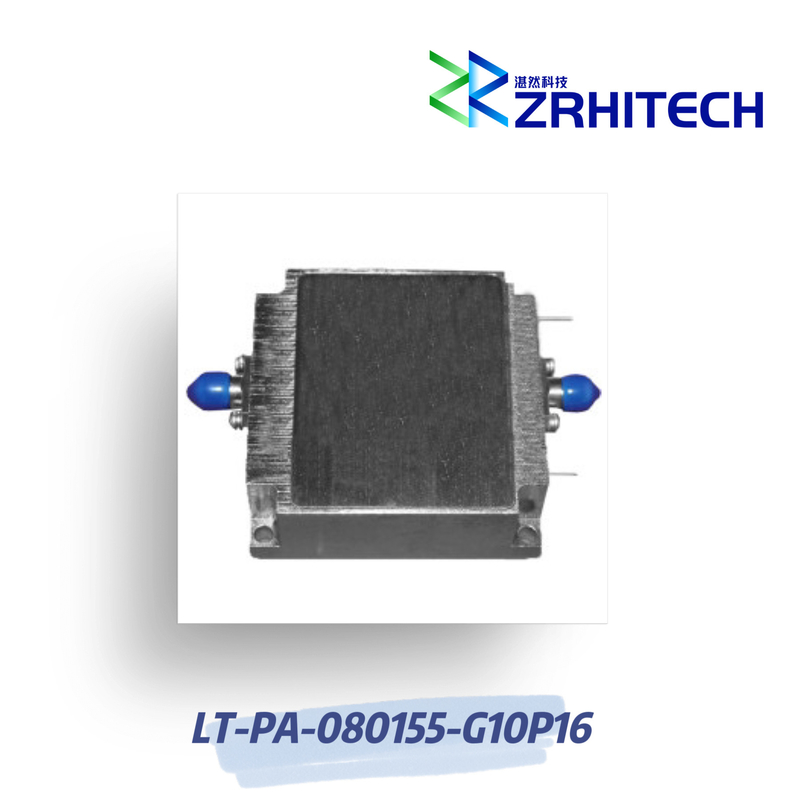

8 To 15.5 GHz 10dBm Power Amplifier with 16dB Small Signal Gain
8 To 15.5 GHz 10dBm Power Amplifier with 16dB Small Signal Gain
Product Overview
The LT-PA series Power Amplifier is designed for wireless communication applications, featuring an aluminum housing and operating within a temperature range of -40℃ to +85℃.
Key Features
- Frequency range: 8 to 15.5 GHz
- Small Signal Gain: 16dB
- Output Power: 10dBm
- Aluminum housing for durability
- Customizable frequency options available
- Compliance: CE, RoHS, REACH
- 1-year warranty included
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-080155-G10P16 | |
| Configuration | Module with Connector | |
| Frequency Range | 8 to 15.5 GHz | |
| Small Signal Gain | 16 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 10 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200 mA | |
| Operating Temperature | -20 to +85 ℃ | |
| Dimension | 35*35*16 mm |
Note: Custom specifications available upon request. Please contact us for details.
Product Dimensions
