Highlight
RF Radio Frequency Power Amplifiers
,Radio Frequency Power Amplifiers 10dB
,15GHz RF Amplifiers
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range7 To 15 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-070150-G10P16
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

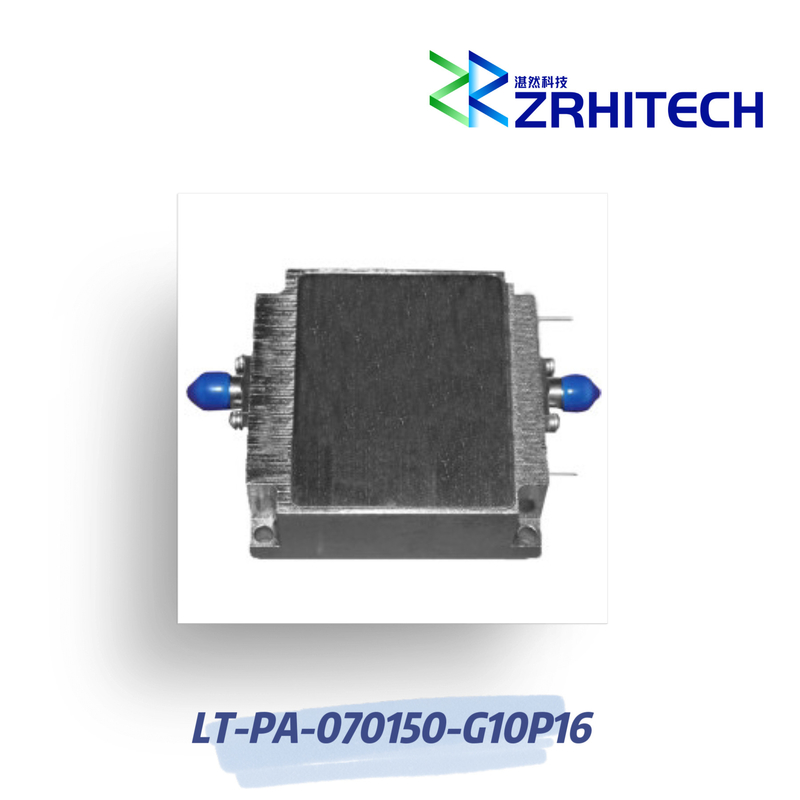

7 To 15 GHz 19dBm Power Amplifier with 25dB Small Signal Gain
7 To 15 GHz 19dBm Power Amplifier with 25dB Small Signal Gain
Product Overview
The LT-PA series Power Amplifier is designed for wireless communication applications, featuring a durable aluminum housing and reliable performance across a wide temperature range.
Key Features
- Frequency range: 7 to 15 GHz
- Small Signal Gain: 25dB
- Output Power: 19dBm
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-070150-G10P16 | |
| Configuration | Module with Connector | |
| Frequency Range | 7 to 15 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 19 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200 mA | |
| Operating Temperature | -20 to +85 ℃ | |
| Dimension | 35*25*16 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Product Dimensions
