Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range8.5 To 9 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-085090-G16P17
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

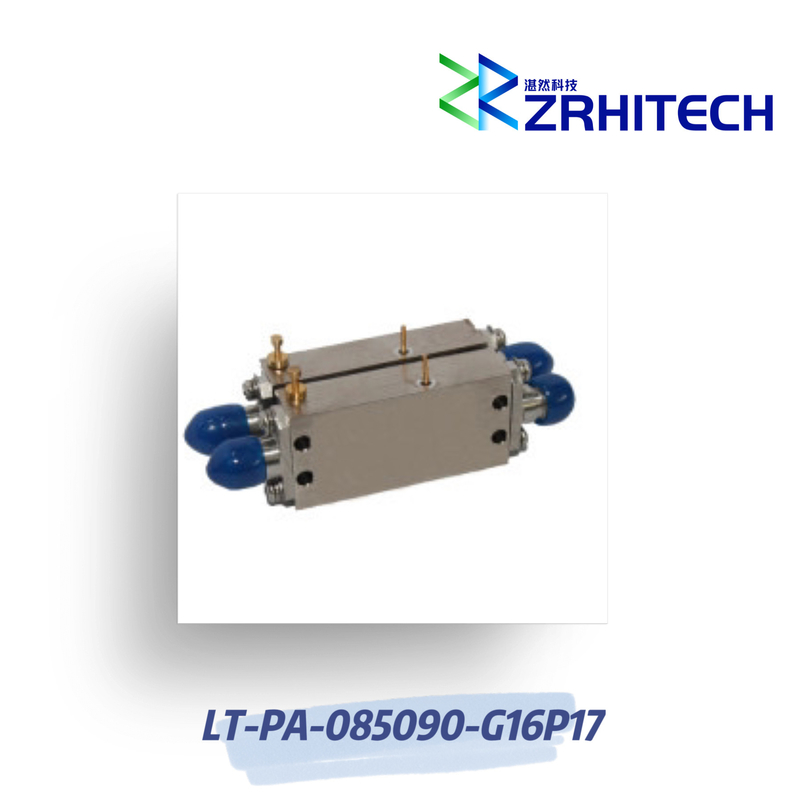

8.5 To 9 GHz 17dBm Power Amplifiers with 16dB Small Signal Gain
8.5 to 9 GHz LT-PA Series Power Amplifier
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Small Signal Gain 16dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PA-085090-G16P17 from ZR is a RF Amplifier with Frequency 8.5 to 9 GHz, Small Signal Gain 16 dB, Gain Flatness ±1.0 dB, Output Power 17dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA-085090-G16P17 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-PA-085090-G16P17 | |
| Configuration | Module with Connector | |
| Frequency Range | 8.5 to 9 GHz | |
| Small Signal Gain | 16 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 17 dBm | |
| Input Power | 5 dBm | |
| VSWR | 1.7:1 | |
| Power Supply | +5V / 200 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 34.4*16.8*8.1 mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
