Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2.6 To 6 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-026060-G25P15
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

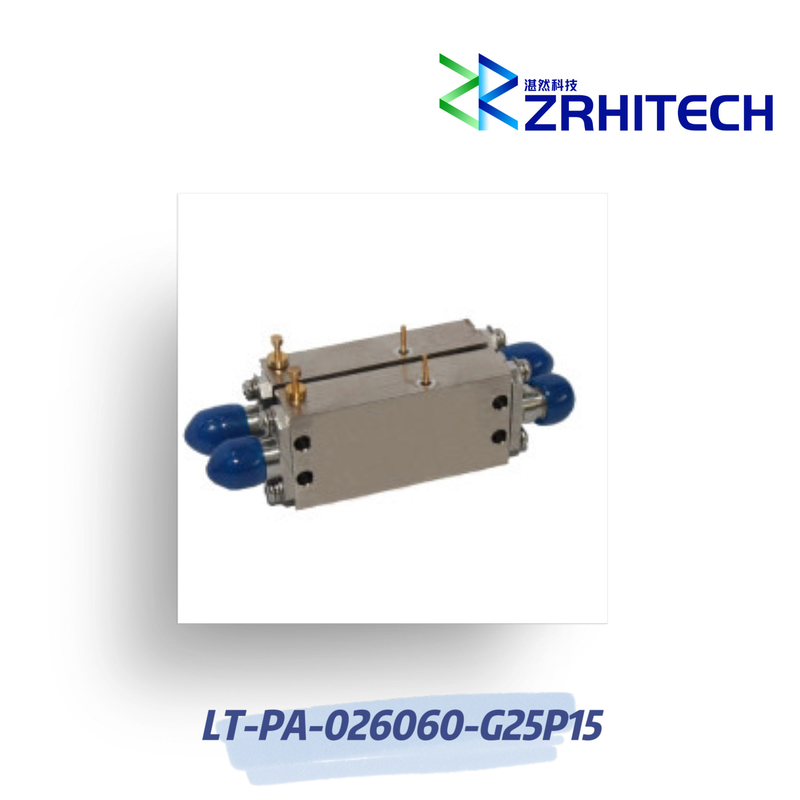

2.6 To 6 GHz 15dBm Power Amplifier with 25 dB Small Signal Gain
2.6 To 6 GHz 15dBm Power Amplifier with 25 dB Small Signal Gain
Product Overview
The LT-PA-026060-G25P15 is a high-performance RF power amplifier designed for wireless communication applications, featuring a broad frequency range of 2.6 to 6 GHz with consistent 25 dB small signal gain.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- 25 dB small signal gain with ±1.0 dB flatness
- 15 dBm output power capability
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-026060-G25P15 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.6 to 6 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 15 dBm | |
| Input Power | 5 dBm | |
| VSWR | 1.9:1 | |
| Power Supply | +5V / 150mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 34.4 × 16.8 × 8.1 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.
Product Dimensions
