Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2.5 To 3.5 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-025035-G24P24
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

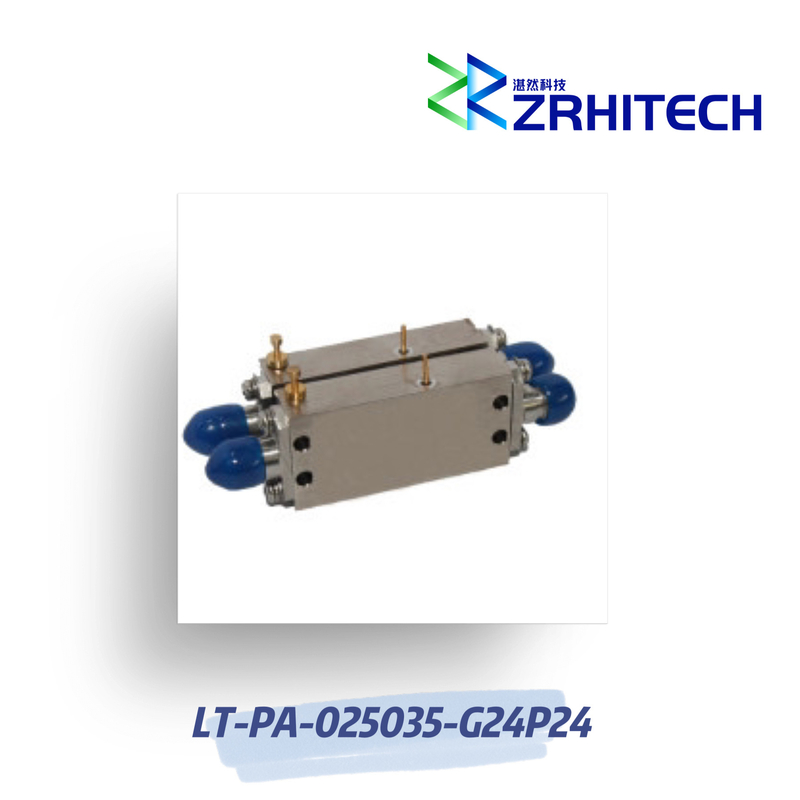

2.5 To 3.5 GHz 24dBm Power Amplifier with 24dB Small Signal Gain
2.5 To 3.5 GHz 24dBm Power Amplifier with 24dB Small Signal Gain
Product Overview
The LT-PA-025035-G24P24 is a high-performance RF power amplifier designed for wireless communication applications, featuring a robust aluminum housing and excellent thermal stability.
Key Features
- Frequency range: 2.5 to 3.5 GHz
- 24dB small signal gain with ±1.0 dB flatness
- 24dBm output power capability
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- CE, RoHS, and REACH compliant
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-025035-G24P24 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.5 to 3.5 GHz | |
| Small Signal Gain | 24 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 24 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 260mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimensions | 34.4 × 16.8 × 8.1 mm |
Note: Custom specifications available upon request.
Product Dimensions
