Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2 To 6 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-020060-G14P23
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

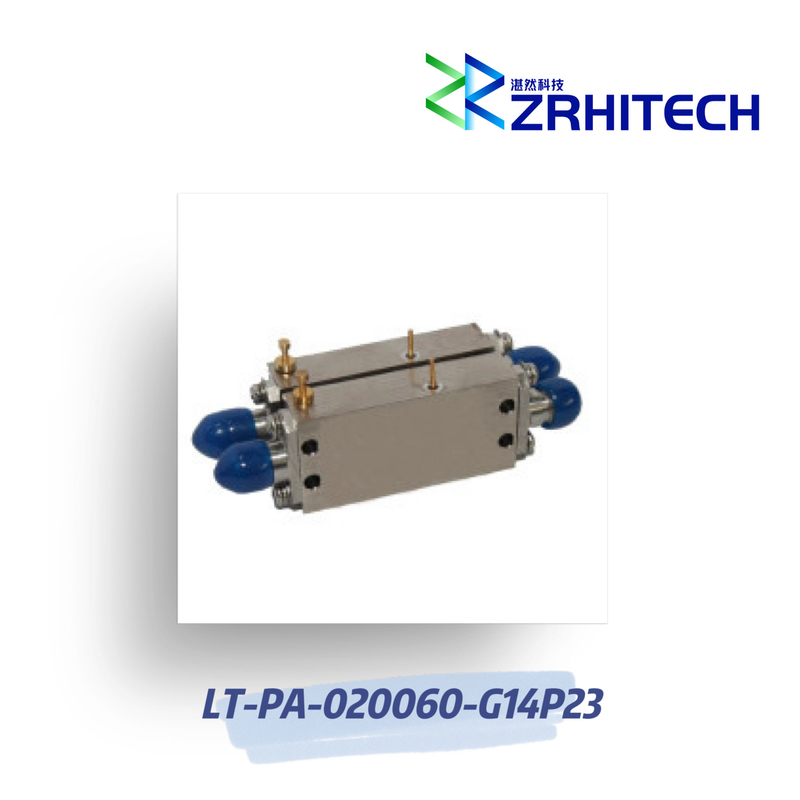

2 To 6 GHz 23 dBm Power Amplifier with 14 dB Small Signal Gain
2 To 6 GHz 23 dBm Power Amplifier with 14 dB Small Signal Gain
Product Overview
The LT-PA-020060-G14P23 is a high-performance RF power amplifier designed for wireless communication applications, featuring a broad frequency range of 2 to 6 GHz with consistent 14 dB small signal gain.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- 14dB small signal gain with ±1.0 dB flatness
- 23dBm output power capability
- Compliance with CE, RoHS, and REACH standards
- Backed by 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-020060-G14P23 | |
| Configuration | Module with Connector | |
| Frequency Range | 2 to 6 GHz | |
| Small Signal Gain | 14 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 23 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimensions | 34.4 × 16.8 × 8.1 mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
Product Dimensions
