Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2 To 6 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-020060-G28P17
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

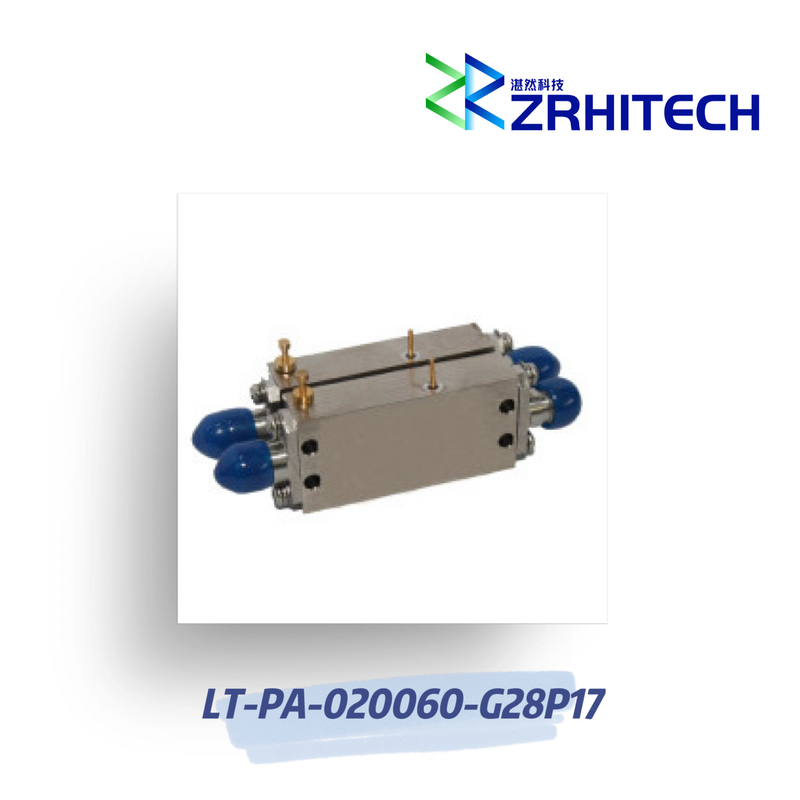

2 To 6 GHz 17dBm Power Amplifier with 28dB Small Signal Gain
2 To 6 GHz 17dBm Power Amplifier with 28dB Small Signal Gain
Product Overview
- Product name: LT-PA series Power Amplifier
- Application: Wireless Communication
- Material: Aluminum housing
- Operating temperature: -40℃ to +85℃
- Frequency range: 2 to 6 GHz
Key Features
- Customizable frequency options
- 28dB small signal gain
- ±1.0 dB gain flatness
- 17dBm output power
- CE, RoHS, REACH compliant
- 1 year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-020060-G28P17 | |
| Configuration | Module with Connector | |
| Frequency Range | 2 to 6 GHz | |
| Small Signal Gain | 28 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 17 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150mA | |
| Operating Temperature | -40 to +85 ℃ | |
| Dimension | 34.4*16.8*8.1 mm |
Note: For custom specifications, please contact us directly.
