Highlight
digital rf amplifier
,20dB rf amplifier
,rf amplifier 2.5GHz
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2.5 To 6 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-025060-G20P17
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
2.5 To 6 GHz 17 dBm Power Amplifier with 20 dB Small Signal Gain
2.5 To 6 GHz 17 dBm Power Amplifier with 20 dB Small Signal Gain
Product Overview
The LT-PA series Power Amplifier is designed for wireless communication applications, featuring a durable aluminum housing and excellent performance across a wide temperature range.
Key Features
- Frequency range: 2.5 to 6 GHz
- 20 dB small signal gain
- 17 dBm output power
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-025060-G20P17 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.5 to 6 GHz | |
| Small Signal Gain | 20 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 17 dBm | |
| Input Power | 10 dBm | |
| VSWR | 1.9:1 | |
| Power Supply | +5V / 150mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 34.4 × 16.8 × 8.1 mm |
Note: Custom specifications available upon request. Please contact us for details.

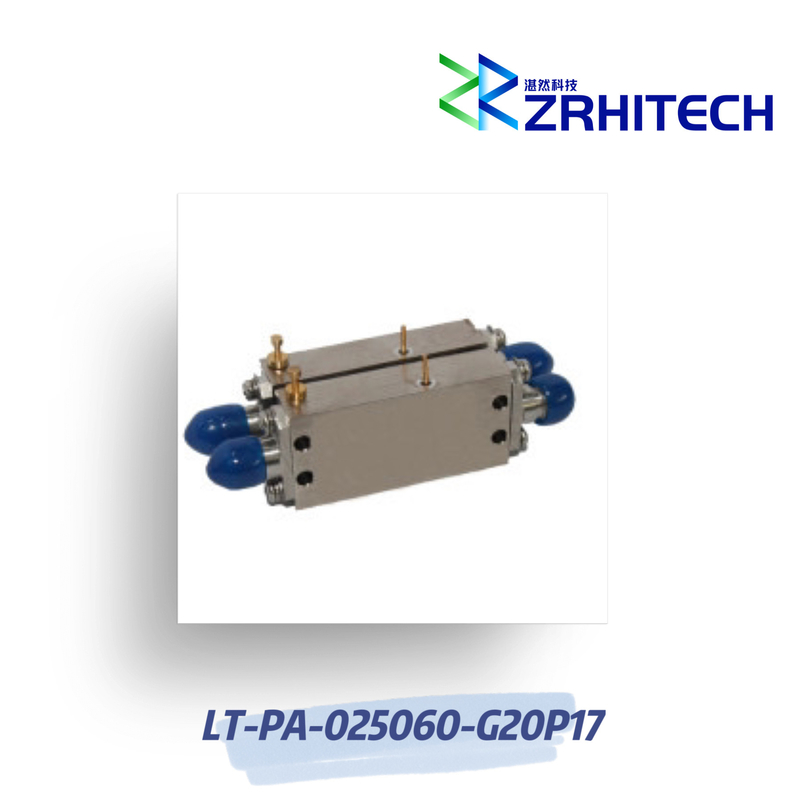

Product Diagram
