20 To 32 GHz Power Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range20 To 32 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-200320-G30P21
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

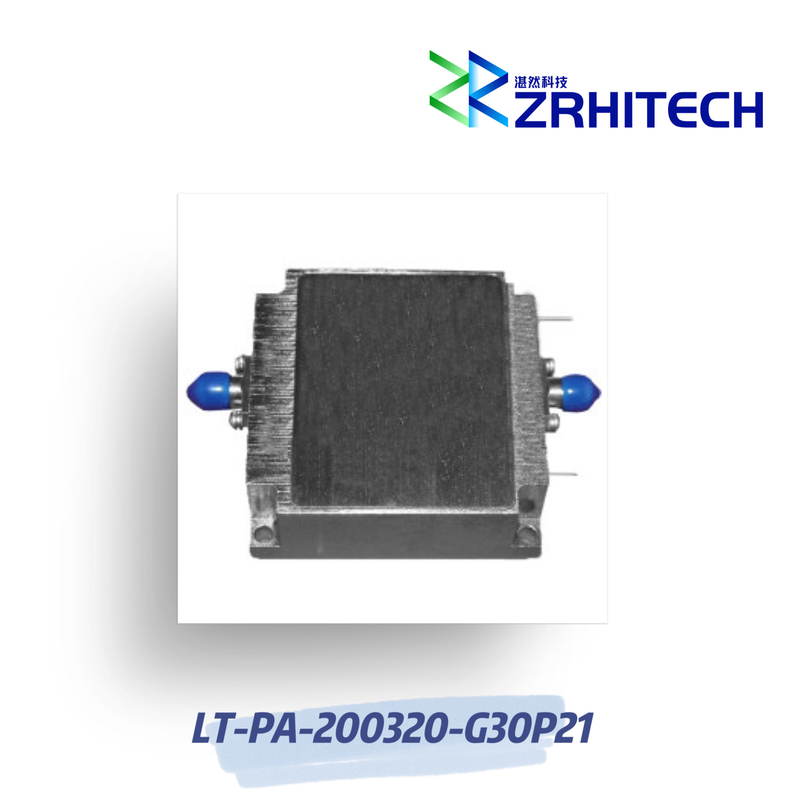

20 To 32 GHz 21dBm Power Amplifier with 30 dB Small Signal Gain
20 to 32 GHz LT-PA Series Power Amplifier
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Small Signal Gain 30dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PA-200320-G30P21 from ZR is a RF Amplifier with Frequency 20 to 32 GHz, Small Signal Gain 30 dB, Gain Flatness ±3.0 dB, Output Power 21dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA-200320-G30P21 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-PA-200320-G30P21 | |
| Configuration | Module with Connector | |
| Frequency Range | 20 to 32 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±3.0 dB | |
| Output Power | 21 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 500mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 50*50*16 mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
