Highlight
45 dB Power Amplifier
,18 GHz Power Amplifier
,21dBm Power Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1 To 18 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-010180-G45P21
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

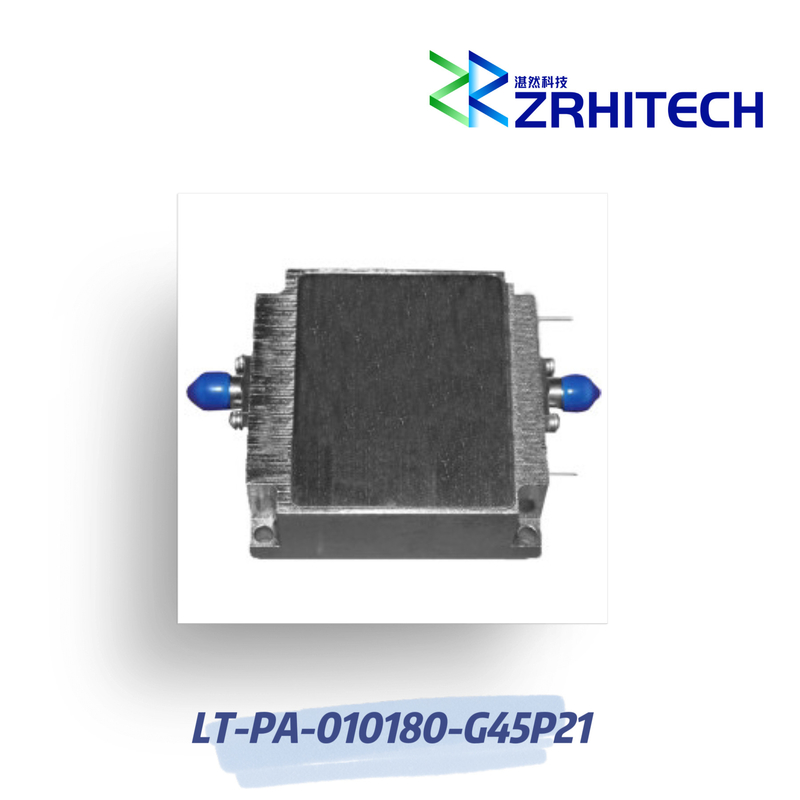

1 To 18 GHz 21dBm Power Amplifier with 45 dB Small Signal Gain
1 To 18 GHz 21dBm Power Amplifier with 45 dB Small Signal Gain
Product Overview
The LT-PA series Power Amplifier is designed for wireless communication applications, featuring a durable aluminum housing and operating across an impressive 1 to 18 GHz frequency range.
Key Features
- Wide frequency range: 1 to 18 GHz
- 45 dB small signal gain
- 21 dBm output power
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-010180-G45P21 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 18 GHz | |
| Small Signal Gain | 45 dB | |
| Gain Flatness | ±3.0 dB | |
| Output Power | 21 dBm | |
| Input Power | 5 dBm | |
| VSWR | 3.0:1 | |
| Power Supply | +12V / 600mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 50*50*25.4 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Product Dimensions
