Highlight
25dBm Power Amplifier
,35 dB Power Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1 To 18 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-010180-G35P25
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

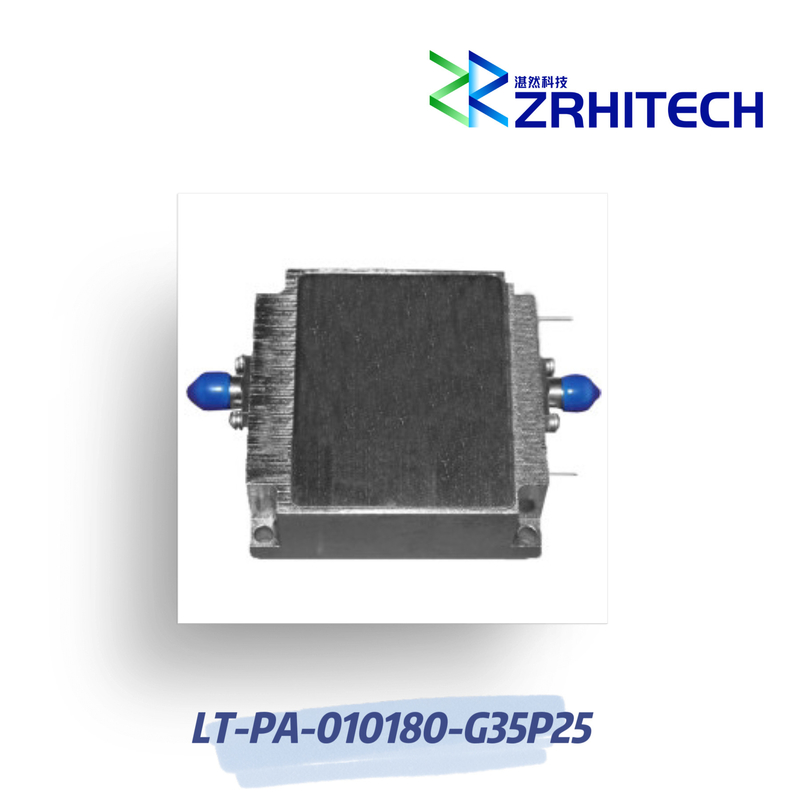

1 to 18 GHz 25dBm Power Amplifier with 35 dB Small Signal Gain
1 to 18 GHz 25dBm Power Amplifier with 35 dB Small Signal Gain
Product Overview
The LT-PA-010180-G35P25 is a high-performance RF power amplifier designed for wireless communication applications, featuring a broad frequency range from 1 to 18 GHz with 35 dB small signal gain.
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- 35 dB small signal gain
- CE, RoHS, and REACH compliant
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-010180-G35P25 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 18 GHz | |
| Small Signal Gain | 35 dB | |
| Gain Flatness | ±3.5 dB | |
| Output Power | 25 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.5:1 | |
| Power Supply | +12V / 1000mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 50*50*25.4 mm |
Note: Custom specifications available upon request.
Product Dimensions
