32dBm Power Amplifier
,43.5 dB Power Amplifier
,32 To 38 GHz Power Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range32 To 38 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-320380-G43P24
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

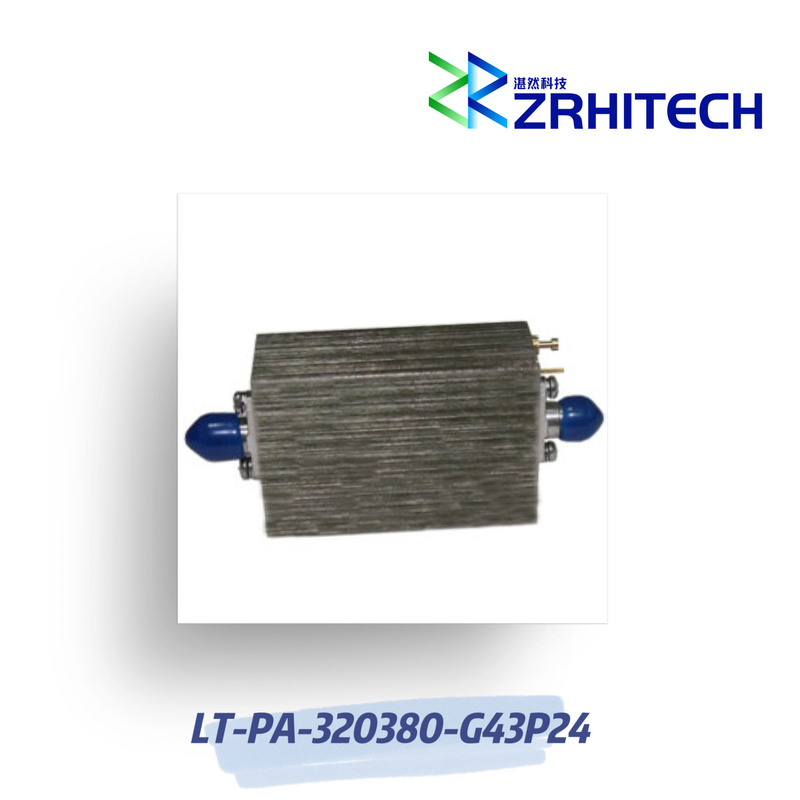

32 To 38 GHz 32dBm Power Amplifier with 43.5 dB Small Signal Gain
32 To 38 GHz 32dBm Power Amplifier with 43.5 dB Small Signal Gain
Product Overview
The LT-PA-320380-G43P24 is a high-performance RF power amplifier designed for demanding wireless communication applications. With its robust aluminum housing and wide operating temperature range, this amplifier delivers reliable performance in challenging environments.
Key Features
- Frequency range: 32 to 38 GHz
- Small signal gain: 43.5 dB
- Output power: 32dBm
- Aluminum housing for durability
- Operating temperature: -40℃ to +85℃
- CE, RoHS, and REACH compliant
- 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-320380-G43P24 | |
| Configuration | Module with Connector | |
| Frequency Range | 32 to 38 GHz | |
| Small Signal Gain | 43.5 dB | |
| Gain Flatness | ±2.5 dB | |
| Output Power | 32 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.2:1 | |
| Power Supply | +12V / 450mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 44.7*29.5*17.3 mm |
Note: Custom specifications available upon request. Please contact us for details.
Product Dimensions
