5.4 To 5.9 GHz Power Amplifier
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range5.4 To 5.9 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-054059-G30P32
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

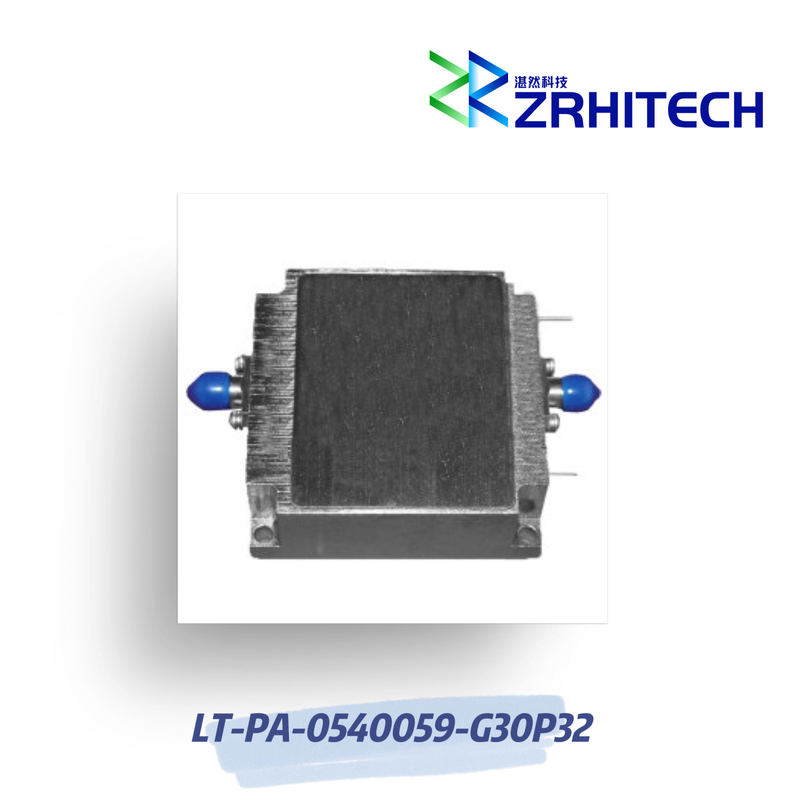

5.4 To 5.9 GHz 32dBm Power Amplifier with 30 dB Small Signal Gain
5.4 To 5.9 GHz 32dBm Power Amplifier with 30 dB Small Signal Gain
Product Overview
The LT-PA-054059-G30P32 is a high-performance RF power amplifier designed for wireless communication applications, featuring a robust aluminum housing and excellent thermal stability.
Key Features
- Aluminum housing for durability and heat dissipation
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- 32dBm output power with 30dB small signal gain
- Compliant with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-054059-G30P32 | |
| Configuration | Module with Connector | |
| Frequency Range | 5.4 to 5.9 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 32 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 1500mA | |
| Operating Temperature | -55 to +85 ℃ | |
| Dimension | 35×35×16 mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
