Highlight
LT-SS-G3AD-CH4
,Gas Detector
,NDIR CH4 Gas Sensor
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameGas Sensor
-
MaterialAluminum
-
Operating Temperature-20~100℃
-
ApplicationGas Safety
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-G3AD-CH4
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

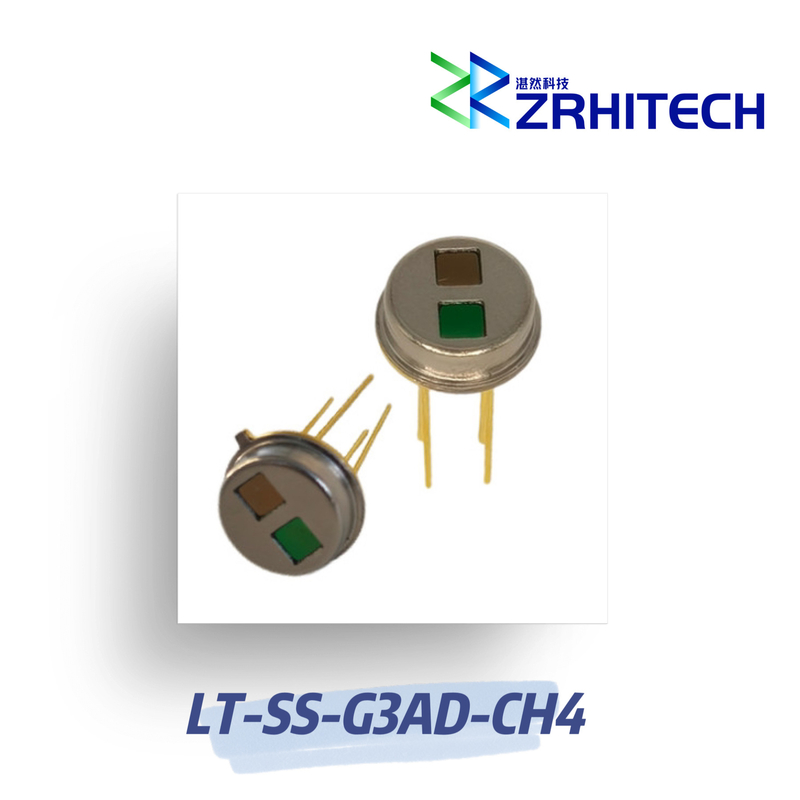

NDIR CH4 Gas Sensor With High Infrared Response Rate
NDIR CH4 Gas Sensor With High Infrared Response Rate
Key Features
- Aluminum housing for durability
- High infrared response rate for accurate detection
- Wide operating temperature range: -20℃ to +100℃
- Exceptional repeatability and reliability
- NDIR CH4 detection technology
- TO-39 Twin window metal shell package
- Compliance with CE, RoHS, and REACH standards
- Backed by 1-year warranty
Product Description
The LT-SS-G3AD-CH4 is a high-precision gas sensor featuring a 108° viewing angle, high sensitivity, and excellent stability. Designed for demanding industrial applications, it operates reliably in temperatures ranging from -20℃ to +100℃.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SS-G3AD-CH4 | |
| Chip Size | 1.8×1.8mm | |
| Sensitive Area | 1.4×1.4mm | |
| Field of View | 108° | |
| Resistance | 72±8 kΩ | |
| Noise Figure | 34±2 nV/Hz1/2 | |
| Noise Equivalent Power | 0.43 nW/Hz1/2 | |
| Response Ratio | 78V/W | |
| Time Constant | 25ms | |
| Detectivity | 1.6E08 cm·Hz1/2/W | |
| Thermistor Value | 100±1% kΩ | |
| Thermistor Beta Value | 3950±1% K | |
| Operating Temperature | -20℃ to +100℃ | |
| Storage Temperature | -40℃ to +125℃ | |
| Duty Cycle | 45% to 55% | |
| Dimensions | 14×9 series (4pad) |
For custom specifications, please contact our technical team directly.
Outline Drawing
