LT-SW Series PIN Doide Switch
Application:
Wireless Communication
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
8 To 16 GHz
Color:
Silver
Packaging Details:
carton packing
Highlight:
8 GHz PIN Diode Switch, 16 GHz PIN Diode Switch, Reflective PIN Diode Switch
Description
8 To 16 GHz SPDT Reflective PIN Diode Switch
Product Attributes
| Attribute | Value |
|---|---|
| Product name | LT-SW series PIN Diode Switch |
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 8 to 16 GHz |
| Color | Silver |
Product Description
The 8 to 16 GHz LT-SW Series PIN Diode Switch offers high-performance switching for demanding wireless communication applications.
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 80ns
- Compliance with CE, RoHS, and REACH standards
- 1-year warranty included

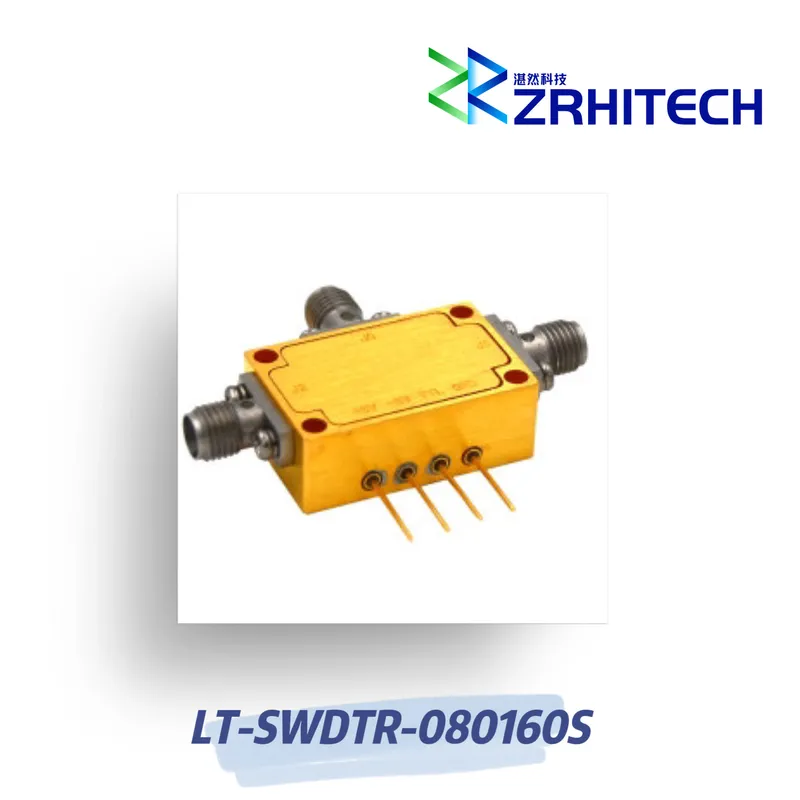

The LT-SWDTR-080160S is a reflective PIN diode switch with a frequency range of 8 to 16 GHz, offering 60 dB isolation and 80ns switching speed. It operates with a power supply bias of +5V/90mA and -5V/50mA.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTR-080160S | |
| Type | Reflective | |
| Configuration | SPDT | |
| Frequency Range | 8 to 16 GHz | |
| Insertion Loss | 2.8 dB | |
| Isolation | 60 dB | |
| Switching Speed | 80 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 90mA -5V / 50mA |
|
| Dimension | 25*17.5*10.2mm |
Note: For custom specifications, please contact us directly.
