1-18 GHz 0dBm Low Noise Amplifier with 39 dB Small Signal Gain for Optimal Signal Amplification
-
Highlight
0dBm Low Noise Amplifier
,39 dB Low Noise Amplifier
,1-18 GHz Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-010180-G39P0
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
1-18 GHz 0dBm Low Noise Amplifier with 39 dB Small Signal Gain for Optimal Signal Amplification
1-18 GHz 0dBm Low Noise Amplifier with 39 dB Small Signal Gain
Quick Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range: -40℃ to +70℃
- 39dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Overview

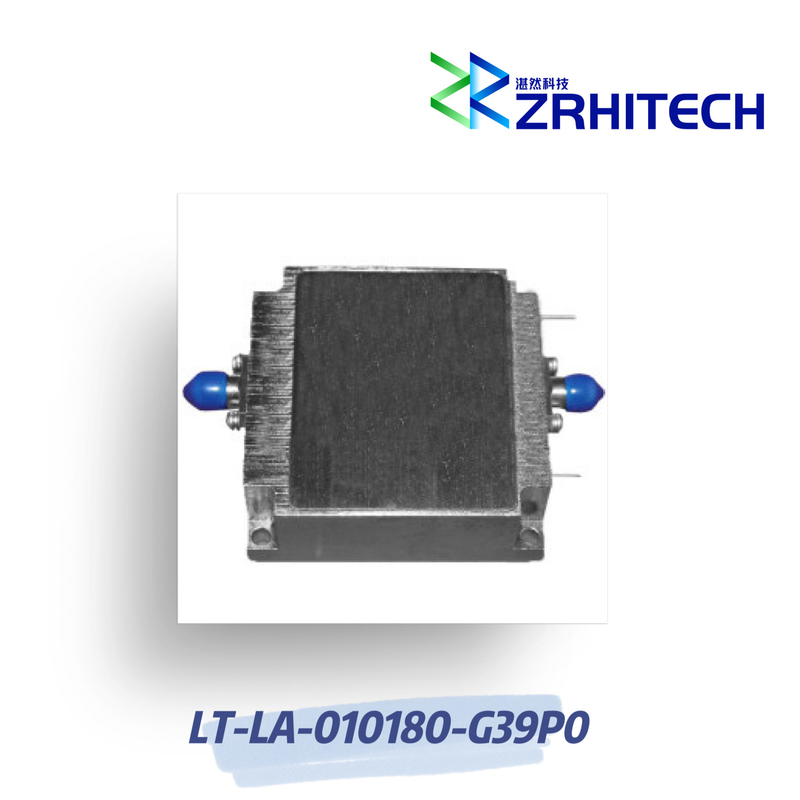

The LT-LA-010180-G39P0 from ZR is a high-performance RF amplifier designed for applications requiring broad frequency coverage from 1 to 18 GHz. This module delivers exceptional signal amplification with 39 dB small signal gain while maintaining ±4.0 dB gain flatness.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-010180-G39P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 1 to 18 GHz | |
| Small Signal Gain | 39 dB | |
| Gain Flatness | ±4.0 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 300 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×48×12 mm |
Outline Drawing
Note: Custom specifications are available upon request. Please contact our technical team for tailored solutions.
