High Frequency Range Ultra Low Phase Noise TCXO 80MHz-125MHz 7.0×5.0mm for Test and Measurement Equipment
-
Highlight
Ultra Low Phase Noise TCXO
,7.0×5.0mm TCXO Oscillators
,80MHz TCXO Oscillators
-
FeaturesThree-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
-
Product NameLT-CR Series Temperature-compensated Crystal Oscillator
-
ApplicationSatellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
-
MaterialAluminum
-
Temperature±0.28ppm ~±2.0ppm
-
Frequency Range80MHz~125MHz
-
Voltage-0.5V/6V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-

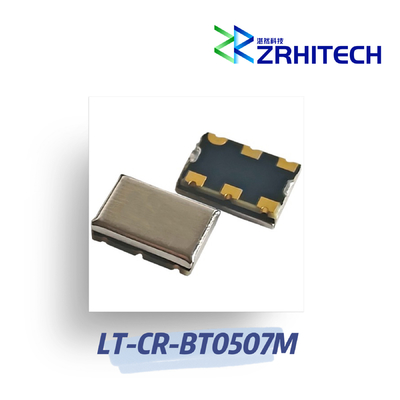

Model NumberLT-CR-BT0507M
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
High Frequency Range Ultra Low Phase Noise TCXO 80MHz-125MHz 7.0×5.0mm for Test and Measurement Equipment
80~125MHz 7.0×5.0mm,High Frequency Range, Ultra Low Phase Noise TCXO
Quick Detail:
· Aluminum housing
· -0.5/6V VDD options
· -55℃~95℃ operating temperature
· Small package
· High precision
· Low phase noise
· Optional three-state control function
· Anti-overload > 30000g
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-BT0507M is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.28ppm to ±2.0ppm over -55ºC to +95ºC across a supply voltage range of -0.5V/6.0V. The bt0507m uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 7.0 mm x 5.0 mm x3.3 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | specification | Condition |
| Part Number | LT-CR-BT0507M | |
| Frequency Range | 80MHz~125MHz | |
| Operating Voltage(VDD) | -0.5V/6.0V | |
| Operating Temperature | -55℃~+95℃ | |
| Freq. Stability Vs. Temp. | ±0.28ppm ~±2.0ppm | -40℃~+85℃ |
| Frequency Tolerance | ±0.5ppm~±2.0ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | LVCMOS | |
| Voltage-controlled voltage | 1.5V±1.0V | |
| Absolute Pull Range | ||
| Phase Noise | -85dBc@10Hz | At +25℃ |
| -120dBc@100Hz | ||
| -142dBc@1kHz | ||
| -165dBc@100kHz | ||
| Overload Resistance | ||
| Dimension | 7.0 mm x 5.0 mm x3.3 mm | |

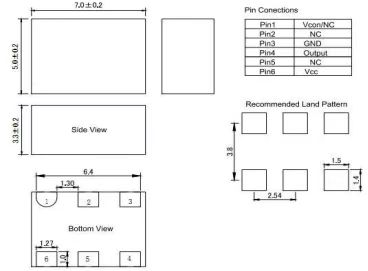

Outline Drawing (Unit: mm):
Our products are sold all over the world, you can rest assured.
