High Precision MEMS Pressure Sensor
,Temperature Range MEMS Pressure Sensor
,15V MEMS Pressure Sensor
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameMEMS Pressure Sensor
-
MaterialAluminum
-
Operating Temperature-30~100℃
-
ApplicationPressure Detection
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-P-10-700-SOP
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

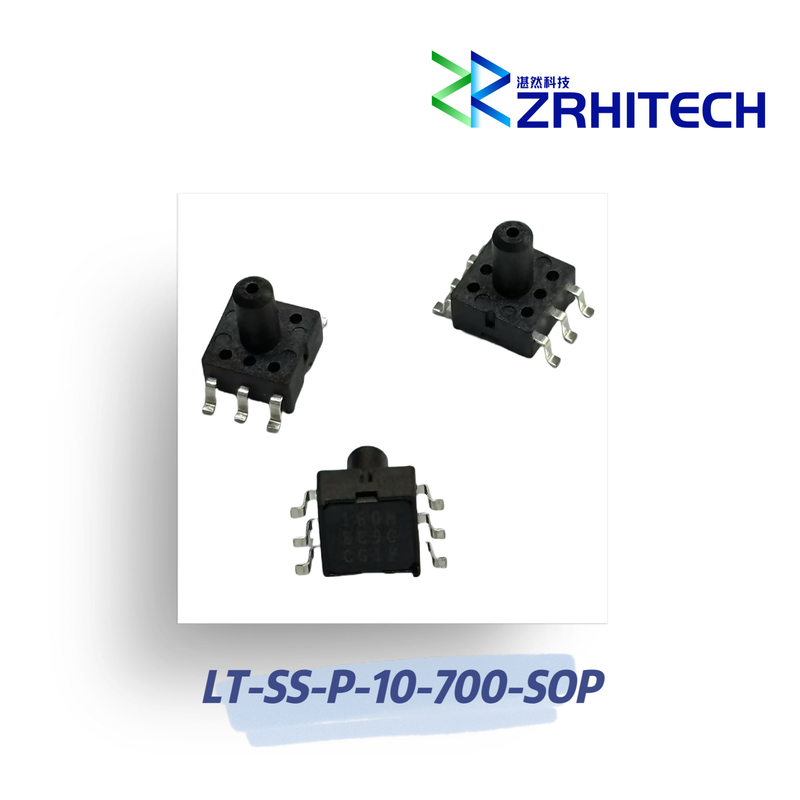

Aluminum 5V-15V High Precision MEMS Pressure Sensor
Aluminum 5V-15V High Precision MEMS Pressure Sensor
Product Overview
The LT-SS series high precision MEMS pressure sensor delivers exceptional performance with aluminum construction and reliable pressure detection capabilities.
Key Features
- SOP or DIP packaging options
- Advanced MEMS technology
- Table pressure type design
- Compatible with non-corrosive gases
- High sensitivity for precise measurements
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Technical Specifications
| Attribute | Value | Conditions |
|---|---|---|
| Part Number | LT-SS-P-10-700-SOP | |
| Voltage Power Supply | 5~15V | |
| Current Power Supply | 1~3mA | |
| Measurement Range | 10,20,40,100,200,700 kPa | |
| Zero Output | -10~10mV | |
| Full Range Output (10kPa) | 35~65mV | |
| Full Range Output (20kPa) | 35~50mV | |
| Full Range Output (40kPa) | 60~90mV | |
| Full Range Output (100/200kPa) | 60~120mV | |
| Full Range Output (700kPa) | 30~60mV | |
| Overload Capacity (≤40 kPa) | 3X rate | |
| Overload Capacity (40-200kPa) | 2X rate | |
| Overload Capacity (≤200kPa) | 1.5X rate | |
| Operating Temperature | -30℃~+100℃ | |
| Storage Temperature | -40℃~+150℃ | |
| Nonlinear (≤10 kPa) | -1.0~1.0 %FS | |
| Nonlinear (≥20 kPa) | -0.3~0.3 %FS | |
| Sluggish | -0.3~0.3 %FS | |
| Repetitiveness | -0.3~0.3 %FS |
Note: Custom specifications available upon request. Please contact us for details.
Product Dimensions
SOP Outline (Unit: mm)
DIP Outline - R Type (Unit: mm)
DIP Outline - F Type (Unit: mm)
