Aluminum H2 Gas Sensor
,High Precision H2 Gas Sensor
,NDIR H2 Gas Sensor
-
FeaturesHigh Sensitivity;Good Stability
-
Product NameGas Sensor
-
MaterialAluminum
-
ApplicationGas Detection
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-H2
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
Aluminum Gas Detection Made Easy with High Precision NDIR H2 Gas Sensor
Aluminum Gas Detection Made Easy with High Precision NDIR H2 Gas Sensor
Key Features
- Aluminum housing for durability
- Low power consumption design
- High repeatability and sensitivity
- NDIR H2 detection technology
- Comprehensive gas detection capabilities
- CE, RoHS, REACH compliant
- 1 Year Warranty included
Product Overview

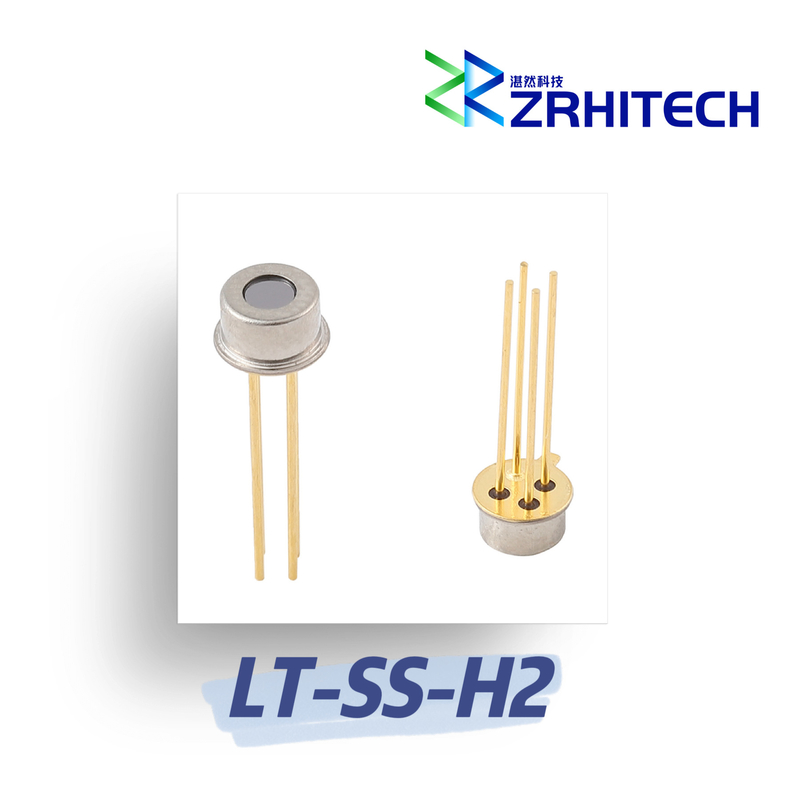

The LT-SS-H2 high precision gas sensor features thermal conductivity detection with excellent sensitivity and stability. Its aluminum construction ensures durability while maintaining precise gas detection performance.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SS-H2 | |
| Detection Principle | Thermal conductivity | |
| Standard Packaging | 2×TO46 | |
| Target Gas | H2 | |
| Detection Range | 0~100% | |
| Test Carrier Gas | Air (20.9% O2 in N2) | 20℃±2℃, 50±5% RH |
| Test Gas Conditions | H2, concentration 0~4% | |
| Circuit Conditions | Heating voltage Vh=2±0.01V DC | |
| Preheating Time | 5 minutes | |
| Heater Resistance (Rh) | 300Ω±10% (working) | 300Ω±10% (reference) |
| Temp. Measuring Element Resistance (TP) | 70kΩ±10% | |
| Heating Power Consumption (PH) | PH=13.3mW×2 | |
| Signal Standard Deviation (σ) | 20±10uV | 2Hz, 1min sampling, differential wiring |
| Response Time (T) | 3 s (T80) | |
| Sensitivity (S) | About 3Mv/% | |
| Linearity | 2% | (concentration >4% may cause additional nonlinearity) |
Note: Contact us directly for custom specifications.
Product Dimensions
Outline drawing with PCB substrate (Unit: mm)
Outline drawing without PCB substrate (Unit: mm)
