RF SP4T PIN Diode Switch
,PIN Diode Switch for Mobile Satellite
,SP4T RF PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range2 To 8 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW3TA-020080S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

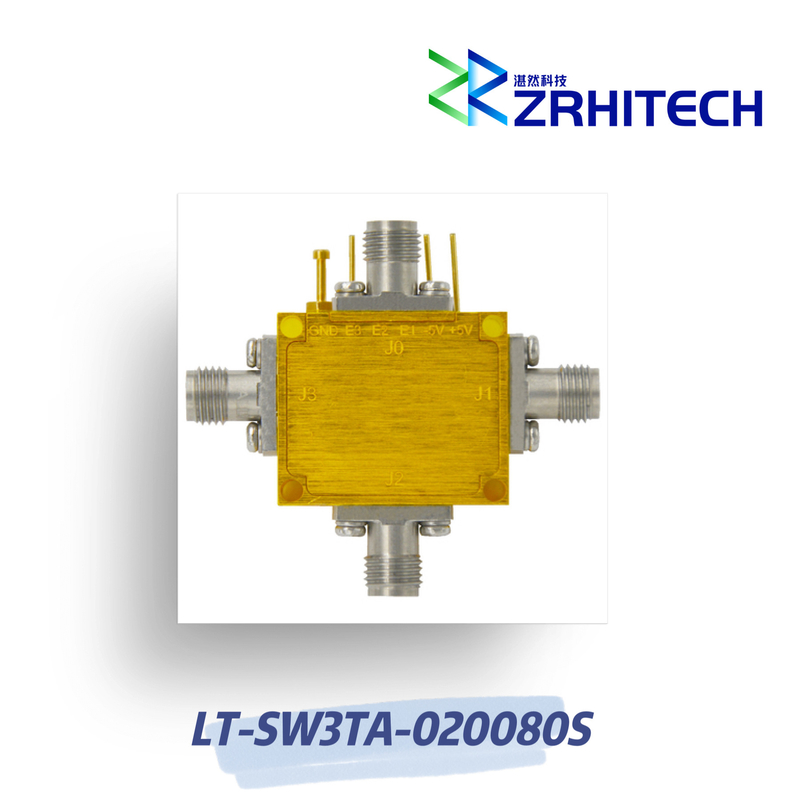

2 To 8 GHz SP3T Absorptive PIN Diode Switch
2 to 8 GHz LT-SW Series PIN Diode Switch
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Fast Switching Time 100ns
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SW3TA-020080S from ZR is a Absorptive PIN Diode Switch with Frequency 2 to 8 GHz, Isolation 70 dB, Switching Speed 100ns. Power Supply with bias +5V/120mA and -5/50mA. More details for LT-SW3TA-020080S can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SW3TA-020080S | |
| Type | Absorptive | |
| Configuration | SP3T | |
| Frequency Range | 2 to 8 GHz | |
| Insertion Loss | 1.8 dB | |
| Isolation | 70 dB | |
| Switching Speed | 100 ns | |
| Control | PIN | |
| Input / Output VSWR | 1.5:1 | |
| Input Power | 1.0 W | |
| Power Supply(Bias) | +5V / 120mA | |
| -5V / 50mA | ||
| Dimension | 40*25*10.5mm | |
| Note: for custom specs, please contact us directly. | ||
