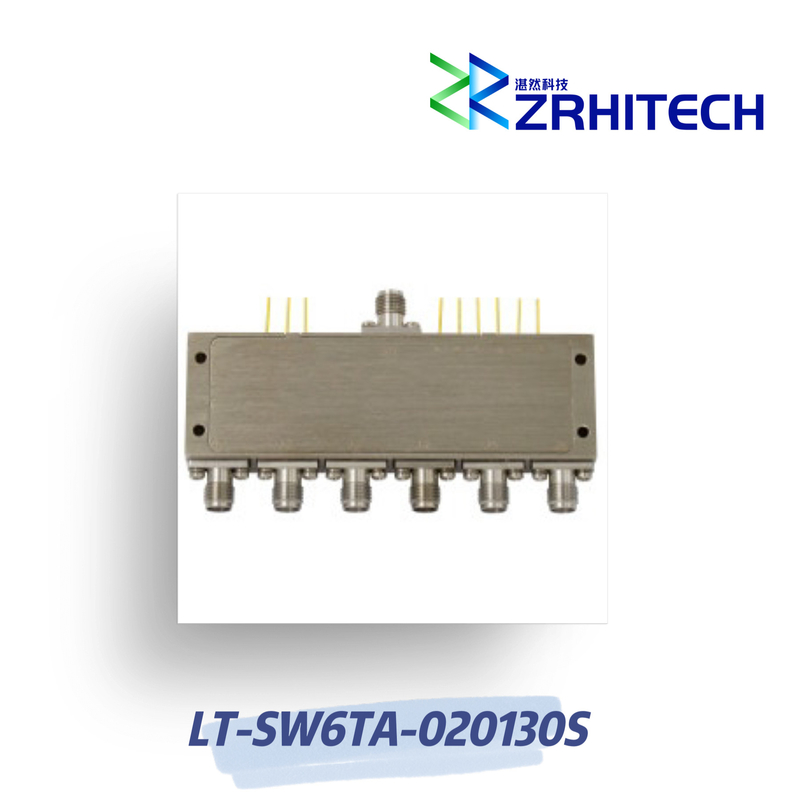

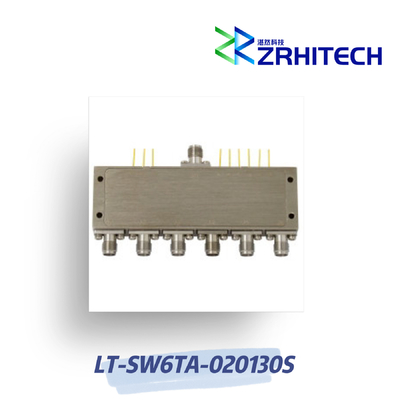

2 To 13 GHz SP6T Absorptive PIN Diode Switch
2 To 13 GHz SP6T Absorptive PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency Range | 2 to 13 GHz |
| Color | Silver |
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 100ns
- Compliant with CE, RoHS, and REACH standards
- 1-year warranty included
Product Description
The LT-SW6TA-020130S is an absorptive PIN diode switch designed for high-frequency applications from 2 to 13 GHz. This SP6T configuration switch offers excellent isolation of 60 dB and fast switching speed of 100ns. The device operates with a power supply bias of +5V/300mA and -5V/50mA.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW6TA-020130S | |
| Type | Absorptive | |
| Configuration | SP6T | |
| Frequency Range | 2 to 13 GHz | |
| Insertion Loss | 3 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 300mA -5V / 50mA |
|
| Dimension | 78*24*10.2mm |
Note: For custom specifications, please contact us directly.
