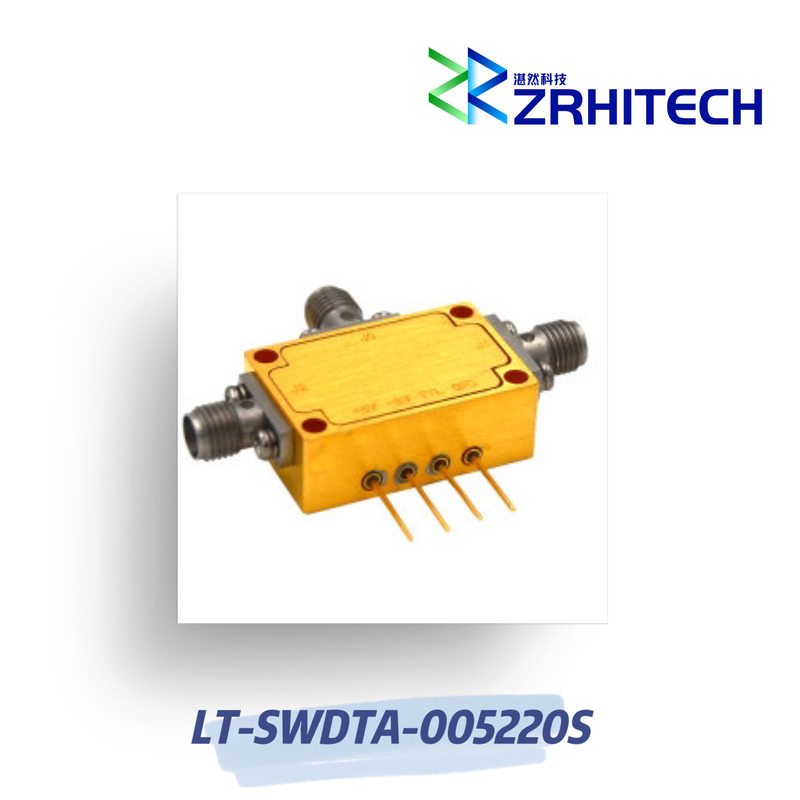

0.5 To 22 GHz SPDT Absorptive Pin Diode Switch
0.5 To 22 GHz SPDT Absorptive Pin Diode Switch
Product Overview
The LT-SWDTA-005220S is a high-performance absorptive PIN diode switch designed for wireless communication applications, featuring a broad frequency range of 0.5 to 22 GHz with excellent isolation characteristics.
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +85℃
- Fast switching time of 100ns
- Compliant with CE, RoHS, and REACH standards
- Includes 1-year warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-005220S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 22 GHz | |
| Insertion Loss | 3.8 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 50mA, -5V / 50mA | |
| Dimensions | 28 × 18 × 10.2 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
