Highlight
crystal oscillator ic Small
,20mhz crystal oscillator ic
,20mhz oscillator
-
FeaturesLow Power Consumption
-
Product NameLT-CR Series Crystal Oscillator
-
ApplicationVarious Electronic Equipment And Instruments In The Field Of National Defense
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range±25ppm
-
Operating Voltage2.97~3.63V
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-CR-O-20M-7050
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
20mhz Crystal Oscillator Ic Small Low Power Consumption

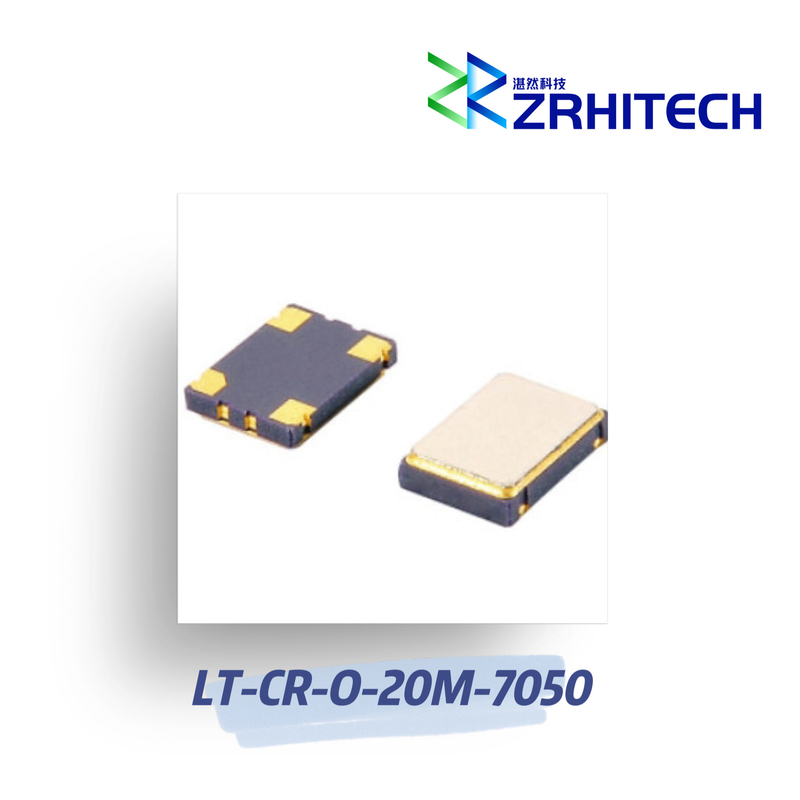

20MHz LT-CR series crystal oscillator
Quick Detail:
· Aluminum housing
· Broadband Frquency
· -40℃~+85℃ operating temperature
· SMD package
· High precision
· Low phase noise
· CMOS Output Waveform
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-CR-O-20M-7050 is the newest addition to ZR’s line of Crystal Oscillator (XO) with a HCMOS output from 1 to 20 MHz. This XO requires a supply voltage of 2.97V to 3.63V and consumes 20 mA of current. They are available in a hermetically sealed surface-mount package and measure 7x5x1.4mm. These XOs are widely used in various electronic equipment and instruments in the field of national defense.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions | |
| Part Number | LT-CR-O-20M-7050 | ||
| Frequency Range | 20MHz | ||
| Operating Voltage | 2.97~3.63V | ||
| Frequency Stability vs. Temperature | ±25ppm | @-40~85℃ | |
| Output Waveform | HCMOS | ||
| Output Load | 15pF | ||
| Duty Cycle(%) | 40~60 | ||
| Rise/Fall Time(ns) | 6ns | 10%~90% | 0.1Vdd→0.9Vdd |
| Dimension | 7x5x1.4mm | ||
| Note: for custom specs, please contact us directly. | |||
Outline Drawing (Unit: mm):
