577.5MHz RF SAW Band Pass Filter

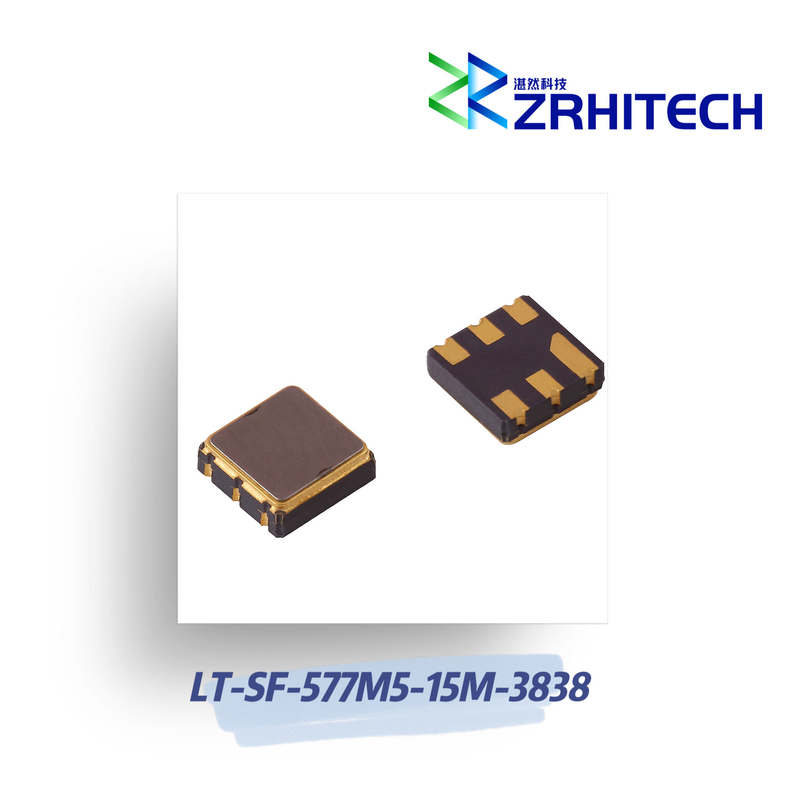

LT-SF Series RF SAW Band Pass Filter - 577.5MHz
Product Overview
The LT-SF-577M5-15M-3838 is a high-performance RF SAW Band Pass Filter designed for wireless communication applications. With a center frequency of 577.5MHz and aluminum housing, this filter offers excellent rejection characteristics and low insertion loss.
Key Features
- Frequency range: 570 to 585 MHz
- Aluminum housing for durability
- Customizable frequency options available
- Operating temperature range: -40℃ to +85℃
- Surface mount package (3.8x3.8x1.5mm)
- Low insertion loss: 1.6 to 2.0 dB
- Compliant with CE, RoHS, and REACH standards
- 1-year warranty included
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-577M5-15M-3838 | |
| Center Frequency | 577.5MHz | |
| Insertion Loss | 2.0dB Max.; 1.6dB Typ. | 570.00-585.00MHz |
| Ripple in Bandwidth | 1.0dB Max.; 1.8dB Typ. | |
| Input VSWR | 2.0 Max.; 1.8 Typ. | |
| Output VSWR | 2.0 Max.; 1.8 Typ. | |
| Attenuation | 40dB Min.@DC-535.00MHz 40dB Min.@700.00-1000.00MHz 30dB Min.@1500.00-2000.00MHz 15dB Min.@2000.00-3000.00MHz |
|
| Dimensions | 3.8x3.8x1.5mm |
Note: Custom specifications available upon request.
