Wireless SAW Filter
,707.5MHz SAW Filter
,SAW Filter 707.5MHz
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range699 To 716 MHz
-
ColorSilver
-
Low Insertion Loss1.6 To 2.5 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-707M5-10M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

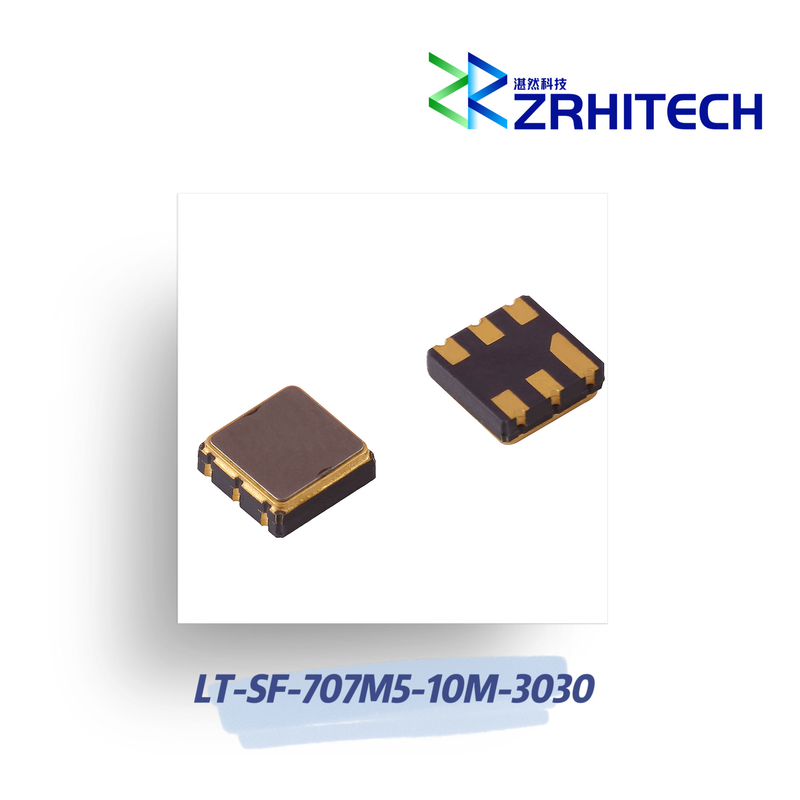

707.5MHz RF SAW Band Pass Filter
707.5MHz RF SAW Band Pass Filter
Product Overview
| Product name | LT-SF series RF SAW Filter |
| Application | Wireless Communication |
| Features | High Rejection |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 699 to 716 MHz |
| Color | Silver |
| Low Insertion Loss | 1.6 to 2.5 dB |
Key Features
- Aluminum Housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Surface mount package design
- Compact 3x3x1.25mm dimensions
- Cost-effective solution
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SF-707M5-10M-3030 is a high-performance Band Pass Filter with a frequency range of 699 to 716 MHz, featuring a 15 MHz bandwidth centered at 707.5 MHz. This RF SAW filter offers excellent performance with insertion loss of 1.6 to 2.5 dB and rejection levels from 18 to 40dB, making it ideal for various wireless communication applications.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SF-707M5-10M-3030 | |
| Center Frequency | 707.5MHz | |
| Insertion Loss (699~716MHz) | 2.5dB Max.; 1.6dB Typ. | |
| Ripple in Bandwidth | 1.7dB Max.; 0.6dB Typ. | |
| Input VSWR | 2.1 Max.; 1.7 Typ. | |
| Output VSWR | 2.1 Max.; 1.7 Typ. | |
| Attenuation | 18dB Min.@1~692MHz 13dB Min.@729~746 MHz 40dB Min.@1386~1442MHz 38dB Min.@1574.42~1576.42MHz 30dB Min.@2084~2158MHz 25dB Min.@2782~2874 MHz |
|
| Dimension | 3x3x1.25mm |
Note: Custom specifications available upon request.
