Features:
Low Phase Noise
Product Name:
LT-CR Series Oven Controlled Crystal Oscillator
Application:
Satellite Communications, Base Stations, Measuring Instruments, Etc
Material:
Aluminum
Temperature:
-55~85℃
Frequency Range:
5MHz~125MHz
Voltage:
3.3~15V
Color:
Silver
Packaging Details:
carton packing
Description
5MHz~125MHz LT-CR series oven controlled crystal oscillator
Key Features
- Aluminum housing
- 3.3V~15V Operating Voltage (VDD)
- -55℃~+85℃ operating temperature
- SMD package
- High precision
- Low phase noise
- CMOS or Sine Wave Output Waveform
- CE, RoHS, REACH compliant
- 1 Year Warranty

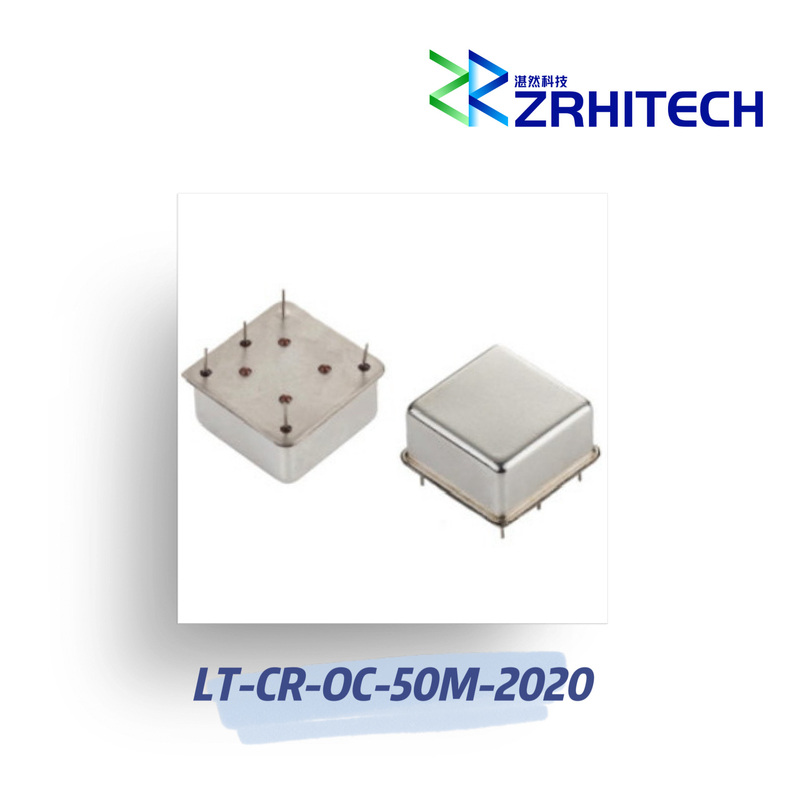

The LT-CR-OC-50M-2020 is the newest addition to ZR’s line of OCXOs. We provide sinewave or CMOS output waveforms with a phase noise of -110 dBc/Hz (at 10 Hz offset) and have a frequency stability of ±10 ppb (vs. temperature). These OCXOs are fabricated using an SC-cut crystal that offers high stability and low aging. They are available in surface-mount packages that measure 20 x 20 x 11 mm. These OCXOs are ideal for satellite communications, base stations, measuring instruments, etc.
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-OC-50M-2020 | |
| Frequency Range | 50M,5MHz~125MHz | |
| Operating Voltage(VDD) | 3.3~15V | |
| Setup Power Consumption | ≤5W | |
| Operating Temperature | -55℃~85℃ | |
| Frequency Stability vs. Temperature | ≤±10ppb | Relative to the frequency at 25℃ |
| Frequency Tolerance | ≤±0.2ppm | @25℃±1℃ |
| Output Waveform | C: CMOS, S: Sine wave | |
| Output Impedance | 50ohms | |
| Output Power | 7~13dBm | |
| Control Voltage(VC) | 0V~VREF | |
| Voltage Frequency Range | ≥±0.5ppm | |
| Voltage Slope | Positive | |
| Voltage Linearity | ≤10% | |
| Input Impedance | ≥100kΩ | |
| Phase Noise (typ.) | -110dBc/Hz@10Hz; -140dBc/Hz@100Hz; -165dBc/Hz@1kHz; -170dBc/Hz@10kHz; -175dBc/Hz@100kHz | Typical Frequency:100MHz |
| Dimension | 20×20×11mm |
Note: for custom specs, please contact us directly.
