Three-stage Bell Temperature Crystal Oscillator, Optional Three-state Control Function, High Precision, Low Phase Noise, There Are Anti-overload Products For Choice, Anti-overload > 30000g
Product Name:
LT-CR Series Temperature-compensated Crystal Oscillator
Application:
Satellite Communication, Military Communication Equipment, Base Station, Test And Measurement Equipment
Material:
Aluminum
Temperature:
±0.1ppm ~±2.0ppm
Frequency Range:
10MHz~125MHz
Voltage:
3.3V/5V
Color:
Silver
Packaging Details:
carton packing
Description
10MHz to 125MHz 9.35*14.65mm, Ultra Stable, Low Phase Noise TCXO
Product Overview
The LT-CR-BT0914A is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.1ppm to ±2.0ppm over -50ºC to +85ºC across a supply voltage range of 3.3V / 5.0V. The bt0914a uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 14.65 mm x 9.35 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.
Quick Detail:
- Aluminum housing
- 3.3V / 5V VCC options
- -50℃~85℃ operating temperature
- Small package
- High precision
- Low phase noise
- Optional three-state control function
- Anti-overload > 30000g
- CE, RoHS, REACH compliant
- 1 Year Warranty
Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-BT0914A | |
| Frequency Range | 10MHz~125MHz | |
| Operating Voltage | 3.3V / 5V | |
| Operating current | / | |
| Working temperature range | -50℃~+85℃ | |
| Frequency Stability vs. Temperature | ±0.1ppm ~±2.0ppm | -40℃~+85℃ *Height≥7mm |
| Initial accuracy of reference temperature | ±0.3ppm~±1.0ppm | At shipment, nominal EFC, +25℃ |
| Output Waveform | CMOS,Sine wave | |
| Output Load | 50Ω | |
| Output power | / | |
| Harmonic wave | / | |
| Stray | / | |
| Phase noise(typical) | <-150dBc@10MHz~20MHz <-145dBc@10MHz~100Hz <-140dBc@10MHz~100Hz@>100MHz <-135dBc@10MHz~100Hz@>100MHz | @+25℃ |
| Acceleration sensitivity | / | |
| Dimension | 14.65×9.35mm |
Note: For specifications beyond the above table, please contact us for customization.

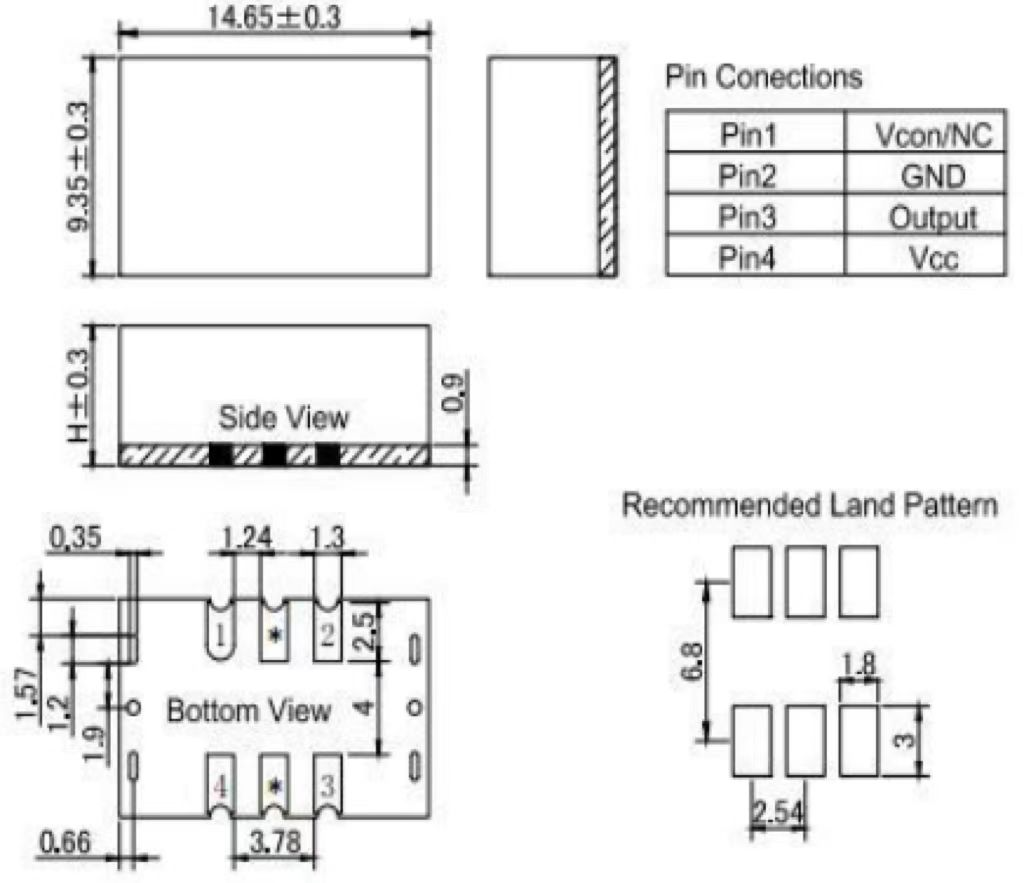

Outline Drawing (Unit: mm):
