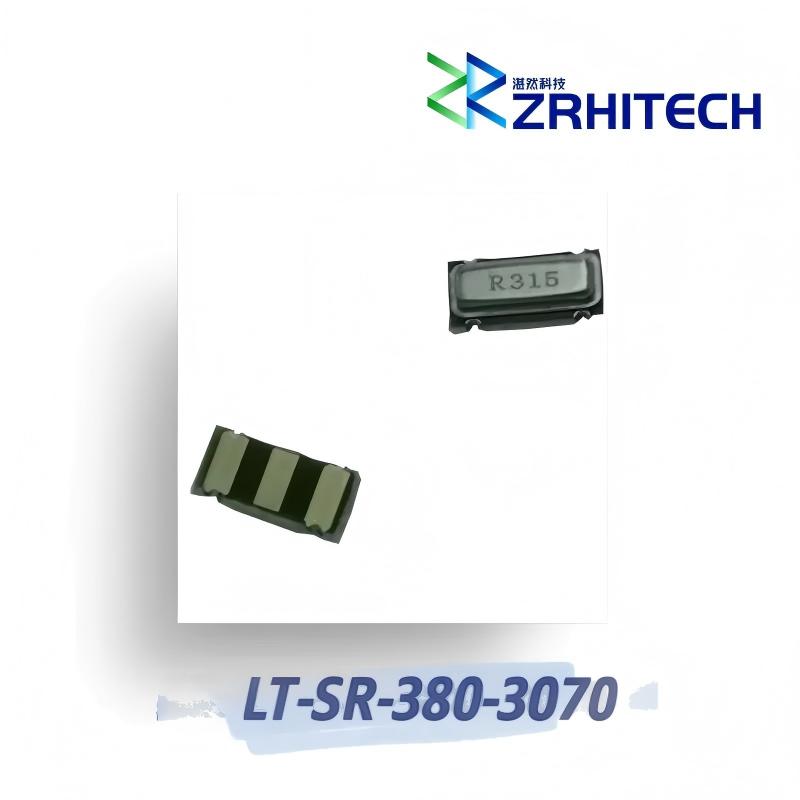

LT-SR-380-3070 SAW Resonator
Product Overview
The LT-SR-380-3070 is a high-performance Surface Acoustic Wave (SAW) Resonator operating in the frequency range of 379.925MHz to 380.075MHz with a center frequency of 380MHz. This surface mount component features low insertion loss (1.5 to 2.2 dB) and excellent quality factor (Q) performance.
Key Features
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- SMD package for easy integration
- DC Voltage: 30V
- RF Power Dissipation: 10dBm
- Compliance: CE, RoHS, REACH
- 1 year manufacturer warranty
Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 379.925 | 380.000 | 380.075 |
| Insertion Loss | dB | 1.5 | 2.2 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1800 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Temperature Coefficient | ppm/℃² | 0.037 | ||
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
Note: For custom specifications or special requirements, please contact our technical team.

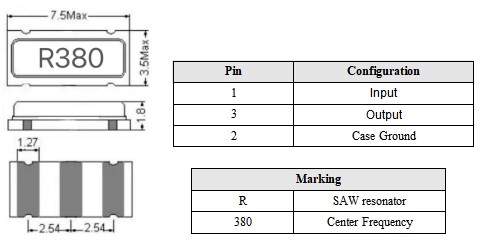

Mechanical Dimensions
