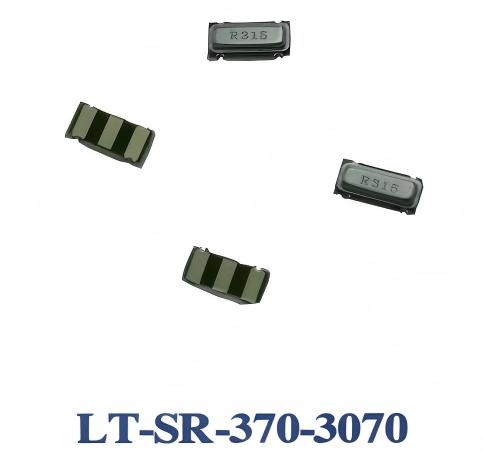

LT-SR-370-3070 SAW Resonator – 369.925MHz to 370.075MHz
Product Overview
The LT-SR-370-3070 is a high-performance Surface Acoustic Wave (SAW) resonator with a center frequency of 370 MHz. Designed for precision applications, it features excellent frequency stability and low insertion loss between 1.5 to 2.2 dB. The component is ideal for surface mount applications in demanding environments.
Key Features
- Frequency Range: 369.925MHz to 370.075MHz
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- SMD package for easy surface mounting
- 30V DC voltage rating
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 369.925 | 370.000 | 370.075 |
| Insertion Loss | dB | 1.5 | 2.2 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1500 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Aging | ppm/yr | ≤±10 |
For custom specifications or special requirements, please contact our technical team.

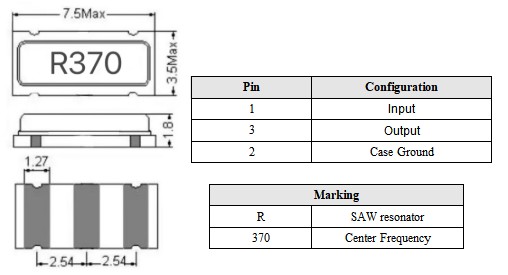

Outline Drawing
