460MHz RF SAW Band Pass Filter

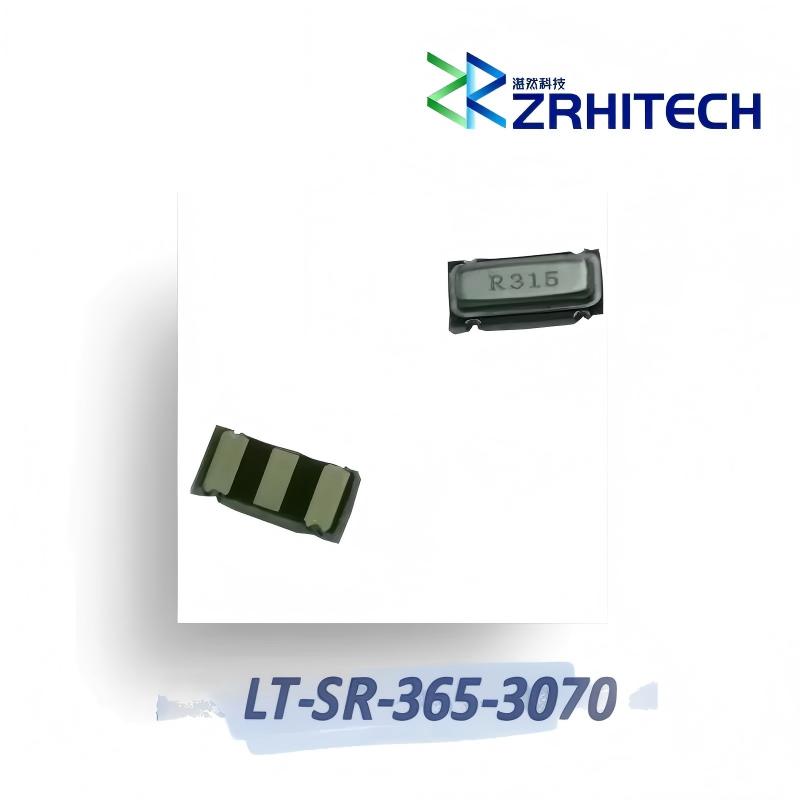

Product Overview
The LT-SR-365-3070 is a high-performance Surface Acoustic Wave (SAW) resonator offering precise frequency operation between 364.925MHz and 365.075MHz. This component features a center frequency of 365MHz with low insertion loss (1.5 to 2.0 dB) and excellent quality factor (Q) of 12000. Designed for surface mount applications, this resonator provides reliable performance in various electronic circuits.
Key Features
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- SMD package for easy integration
- DC Voltage: 30V
- RF Power Dissipation: 0dBm
- Compliance: CE, RoHS, REACH
- 1 year manufacturer warranty
Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 364.925 | 365.000 | 365.075 |
| Insertion Loss | dB | 1.5 | 2.1 | |
| Quality Factor (Unloaded Q) | 12000 | |||
| 50Ω Loaded Q | 1500 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Temperature Coefficient | ppm/℃² | 0.032 | ||
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
Note: For custom specifications, please contact our technical team.

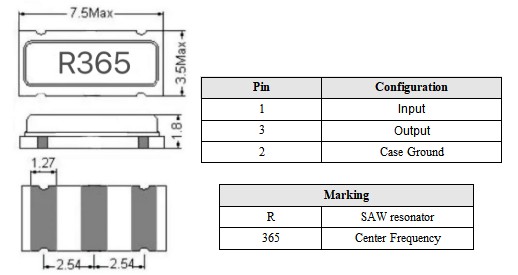

Mechanical Dimensions
