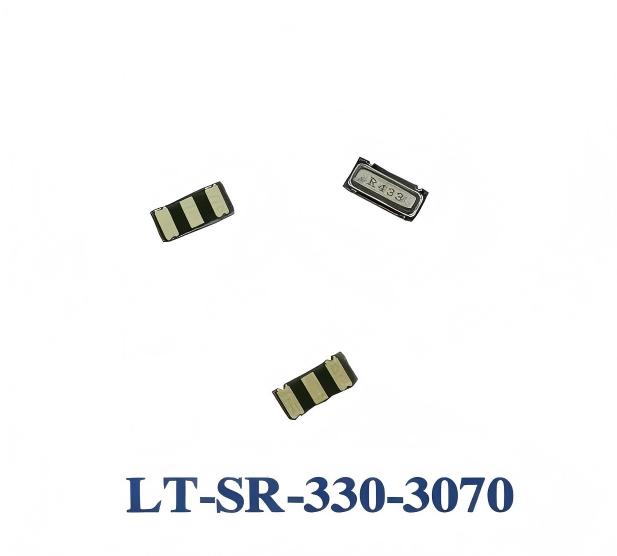

Surface Acoustic Wave Saw Resonators 329.925MHz To 330.075MHz
Product Overview
The LT-SR-330-3070 from ZR is a SAW Resonator with frequency range 329.925MHz to 330.075MHz, featuring a center frequency of 330MHz. This surface mount resonator offers insertion loss of 1.5 to 2.1 dB, capacitance of 2.0 pF, and loaded quality factor of 12800.
Key Features:
- Aluminum Housing
- -40℃~+85℃ Operating Temperature
- SMD Package
- DC Voltage: 10V
- RF Power Dissipation: 10dBm
- CE, RoHS, REACH Compliant
- 1 Year Warranty
Specifications
| Parameter | Units | Min. | Typ. | Max. |
|---|---|---|---|---|
| Center Frequency | MHz | 329.925 | 330.000 | 330.075 |
| Insertion Loss | dB | 1.5 | 2.1 | |
| Quality Factor Unload Q | 12800 | |||
| 50Ω Loaded Q | 2000 | |||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 | 0.037 | ||
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC. Insulation Resistance | MΩ | 1.0 | ||
| Motional Resistance R1 | Ω | 23 | ||
| Motional Inductance L1 | μ H | 154.46 | ||
| Motional Capacitance C1 | fF | 1.51 | ||
| Transducer Static Capacitance | pF | 2.0 |
Note: For custom specifications, please contact us directly.

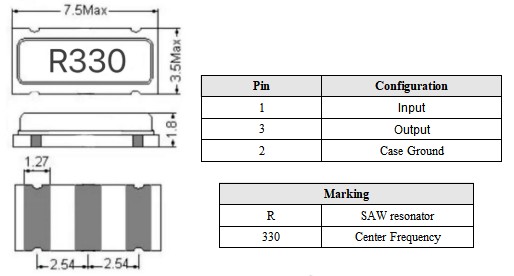

Outline Drawing (Unit: mm)
