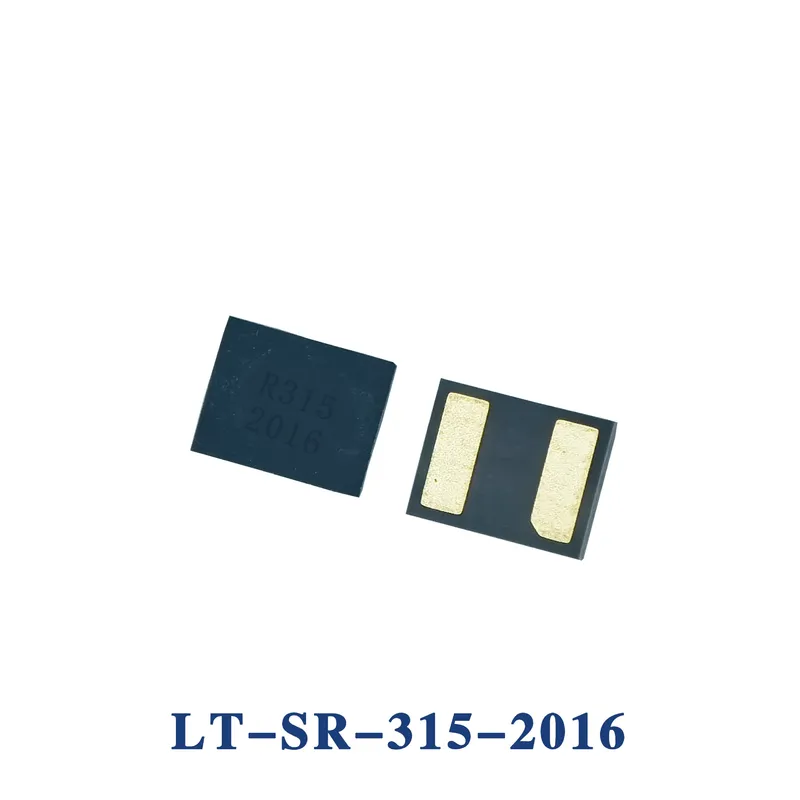

LT-SR-315-2016 LT-SR Series SAW Resonators
Product Overview
The LT-SR-315-2016 SAW Resonator features a frequency range of 314.900 to 315.100 MHz with center frequency at 315 MHz. It offers insertion loss of 1.3 to 2.2 dB and loaded quality factor of 12800. This surface mount resonator is designed for reliable performance in various applications.
Quick Detail
- Aluminum Housing
- -40℃~+85℃ Operating Temperature
- SMD Package
- DC Voltage: 10V
- RF Power Dissipation: 10dBm
- CE, RoHS, REACH Compliant
- 1 Year Warranty
Specifications
| Item | Units | Min. | Typ. | Max. |
|---|---|---|---|---|
| Center Frequency | MHz | 314.900 | 315.00 | 315.100 |
| Insertion Loss | dB | 1.3 | 2.2 | |
| Quality Factor Unload Q | 12800 | |||
| 50Ω Loaded Q | 2000 | |||
| Temperature Stability | Turnover Temperature | ℃ | – | |
| Freq.temp.Coefficient | ppm/℃2 | 0.032 | ||
| Frequency Aging | ppm/yr | ≤10 | ||
| DC. Insulation Resistance | MΩ | 1.0 | ||
| RF Equivalent RLC Model | Motional Resistance R1 | Ω | 16 | |
| Motional Inductance L1 | μ H | 132 | ||
| Motional Capacitance C1 | fF | 19.4 |
Note: for custom specs, please contact us directly.

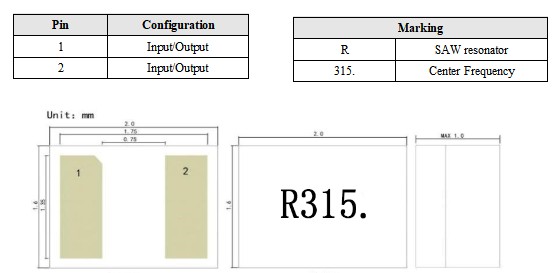

Outline Drawing (Unit: mm)
