LT-SR-310-3070 SAW Resonator – 309.925MHz to 310.075MHz
Product Overview
The LT-SR-310-3070 SAW Resonator features a center frequency of 310 MHz with insertion loss ranging from 1.5 to 2.2 dB and a loaded quality factor of 12800. This surface mount resonator is designed for precision applications requiring stable frequency performance.
Key Features
- Frequency Range: 309.925MHz to 310.075MHz
- Aluminum Housing
- Operating Temperature: -40℃ to +85℃
- SMD Package
- DC Voltage: 10V
- RF Power Dissipation: 0dBm
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Specifications
| Part Number : LT-SR-310-3070 | |||||
| Item | Unites | Min. | Typ. | Max. | |
| Center Frequency | MHz | 309.925 | 310.000 | 310.075 | |
| Insertion Loss | dB | 1.5 | 2.2 | ||
| Quality Factor Unload Q | 12800 | ||||
| 50Ω Loaded Q | 2000 | ||||
| Temperature
Stability |
Turnover Temperature | ℃ | 10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 | 0.037 | |||
| Frequency Aging | ppm/yr | ≤10 | |||
| DC. Insulation Resistance | MΩ | 1.0 | |||
| RF Equivalent RLC Model | Motional Resistance R1 | Ω | 16 | 25 | |
| Motional Inductance L1 | μH | 156.50 | |||
| Motional Capacitance C1 | fF | 1.63 | |||
| Note: for custom specs, please contact us directly. | |||||

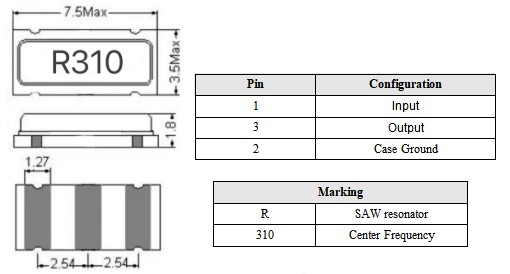

Outline Drawing
