LT-SR-303M825-3070 SAW Resonator
Product Overview
The LT-SR-303M825-3070 is a high-performance Surface Acoustic Wave (SAW) resonator from the LT-SR Series, offering precise frequency operation between 303.775MHz to 303.875MHz with a center frequency of 303.825MHz. This surface mount component features excellent insertion loss characteristics (1.5 to 2.5dB) and a high quality factor (Q) of 12000.
Key Features
- Aluminum housing for durability
- Wide operating temperature range: -40℃ to +85℃
- SMD package for easy integration
- 10V DC voltage rating
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Part Number : LT-SR-303M825-3070 | |||||
| Item | Unites | Min. | Typ. | Max. | |
| Center Frequency | MHz | 303.775 | 303.825 | 303.875 | |
| Insertion Loss | dB | 1.5 | 2.5 | ||
| Quality Factor Unload Q | 12000 | ||||
| 50Ω Loaded Q | 1500 | ||||
| Temperature
Stability |
Turnover Temperature | ℃ | 10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 | 0.032 | |||
| Frequency Aging | ppm/yr | ≤±10 | |||
| DC. Insulation Resistance | MΩ | 1.0 | |||
| RF Equivalent RLC Model | Motional Resistance R1 | Ω | 21.5 | 26 | |
| Motional Inductance L1 | μ H | 170.20 | |||
| Motional Capacitance C1 | fF | 1.56 | |||
| Note: for custom specs, please contact us directly. | |||||

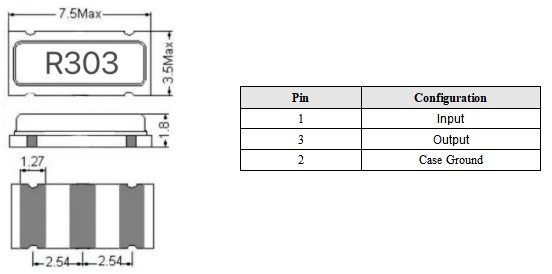

Outline Drawing
