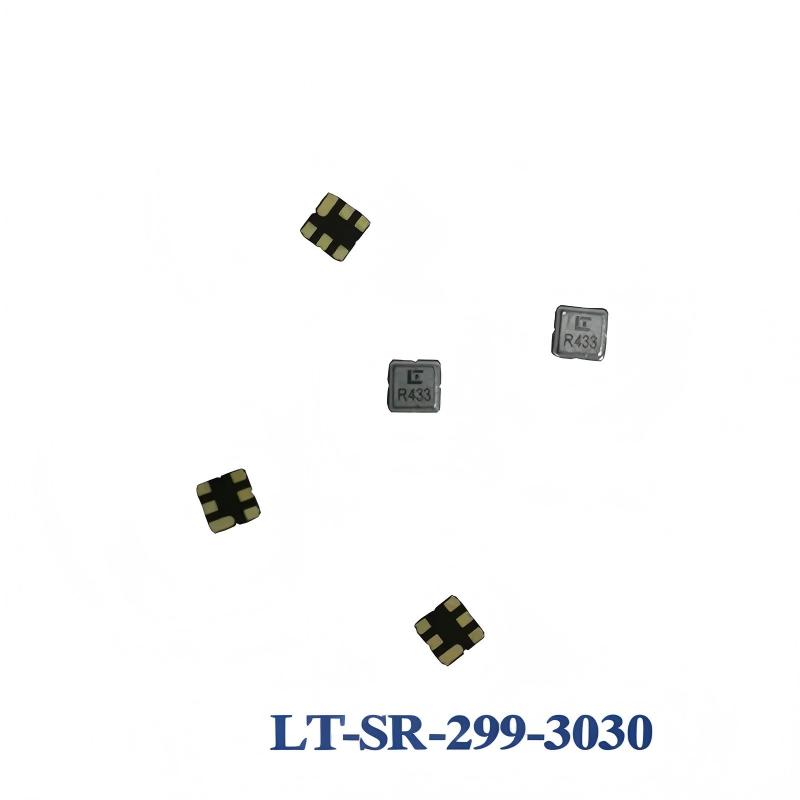

LT-SR-299-3030 SAW Resonator
Product Overview
The LT-SR-299-3030 SAW Resonator operates in the frequency range of 298.925MHz to 299.075MHz with a center frequency of 299MHz. Features include insertion loss of 1.5 to 2.2 dB, capacitance of 2.0 pF, and loaded quality factor of 8000. This surface mount resonator is designed for reliable performance in various electronic applications.
Key Features
- Aluminum housing for durability
- Operating temperature range: -40℃ to +85℃
- SMD package for easy mounting
- DC Voltage: 10V
- RF Power Dissipation: 0dBm
- Compliance: CE, RoHS, REACH
- 1 year warranty
Specifications
| Parameter | Units | Min | Typ | Max |
|---|---|---|---|---|
| Center Frequency | MHz | 298.925 | 299.000 | 299.075 |
| Insertion Loss | dB | 1.5 | 2.2 | |
| Quality Factor (Unload Q) | 8000 | 12800 | ||
| 50Ω Loaded Q | 850 | 1500 | ||
| Temperature Stability | ℃ | 10 | 25 | 40 |
| Frequency Aging | ppm/yr | ≤±10 | ||
| DC Insulation Resistance | MΩ | 1.0 |
Note: For custom specifications, please contact us directly.

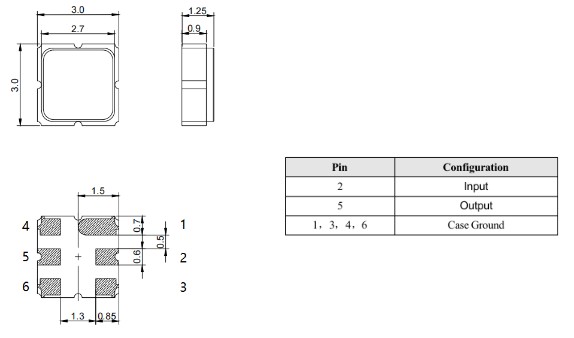

Outline Drawings
