Detail Information
Place of Origin:
CHINA
Document:
Features:
Low Power Consumption
Product Name:
LT-CR Series Crystal Oscillator
Application:
Various Electronic Equipment And Instruments In The Field Of National Defense
Material:
Aluminum
Temperature:
-40~85℃
Frequency Range:
±50ppm
Operating Voltage:
2.97~3.63V
Color:
Silver
Packaging Details:
carton packing
Description

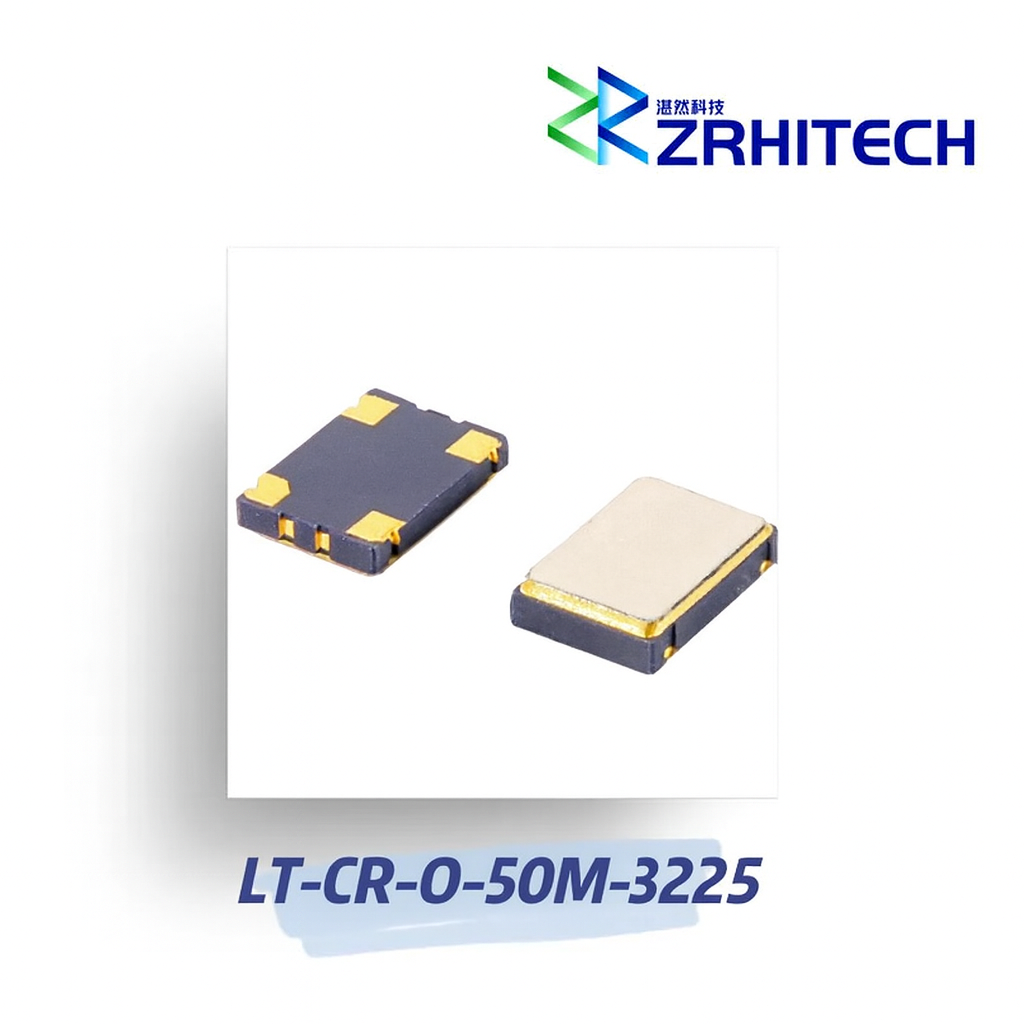

LT-CR-O-50M-3225 Crystal Oscillator
Product Overview
The LT-CR-O-50M-3225 crystal oscillator features a HCMOS output with a frequency range up to 50 MHz. Designed for demanding applications in defense electronics and precision instruments, this surface-mount component offers exceptional stability and performance.
Key Features
- 50MHz frequency range with ±50ppm stability
- Aluminum housing for durability
- Operating temperature range: -40℃ to +85℃
- Compact SMD package (3.2×2.5×1.2mm)
- Low phase noise and high precision
- CMOS output waveform
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-CR-O-50M-3225 | |
| Frequency Range | 50MHz | |
| Operating Voltage | 2.97~3.63V | |
| Temperature Stability | ±50ppm | @-55~85℃ |
| Output Waveform | HCMOS | |
| Output Load | 15pF | |
| Duty Cycle | 40~60% | |
| Rise/Fall Time | 6ns | 10%~90% (0.1Vdd→0.9Vdd) |
| Current Consumption | 30mA | 3.3V non-loaded |
| Dimensions | 3.2×2.5×1.2mm |
For custom specifications, please contact our technical team directly.
Mechanical Drawing
