460MHz RF SAW Band Pass Filter
Product Overview
The LT-LA-007026-G30P0 from ZR is a high-performance RF amplifier operating in the 0.7 to 2.6 GHz frequency range, featuring 30 dB small signal gain and excellent gain flatness of ±1.5 dB.
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- Consistent small signal gain of 30dB
- Compliance with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-007026-G30P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.7 to 2.6 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 0 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×35×25.4 mm |
Note: Custom specifications available upon request.

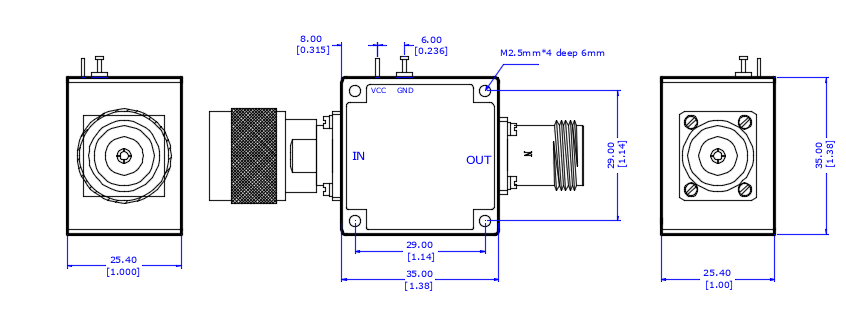

Product Dimensions
