Description
0.01 to 1 GHz 0dBm Low Noise Amplifier
Product Overview
The LT-LA-000010-G25P0-1 from ZR is a high-performance RF amplifier operating in the 0.01 to 1 GHz frequency range. This module features a consistent 25 dB small signal gain with ±1.5 dB flatness, delivering 0dBm output power with 10 dBm input power capability.
Key Features:
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 25dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-000010-G25P0-1 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.01 to 1 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 40×25×12 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.

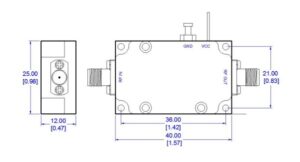

Outline Drawing
